You need to select LV switchgear by focusing on ratings and protection features that ensure operational safety and compliance. Proper switchgear withstands voltage stress, protects against electric shock, and prevents fire hazards. Safety and reliability depend on meeting standards like IEC 61439. The table below shows key requirements for switchgear selection:

Ouxu Electric leads the industry with innovative switchgear solutions. You can address practical concerns and make informed decisions using this LV Switchgear Selection Guide.

Key Takeaways

• Select LV switchgear based on safety ratings to prevent electrical hazards and ensure compliance with standards.

• Always match voltage and current ratings to your system's needs, adding a 25% safety margin for reliability.

• Check for short-circuit and overload protection features to safeguard your equipment from damage.

• Consider environmental factors like humidity and dust when choosing switchgear to ensure long-lasting performance.

• Utilize Ouxu Electric's modular designs for easy upgrades and maintenance, keeping your system adaptable to future needs.

LV Switchgear Selection Guide: Key Concepts

What Is LV Switchgear?

You use LV switchgear to manage and protect electrical power in low voltage systems. LV switchgear acts as the backbone of modern power distribution. It controls, distributes, and isolates electrical circuits, making your facility safer and more reliable. International standards define LV switchgear differently. The IEC describes it as a complete assembly of devices designed and verified for low voltage networks, emphasizing safety and unified design. North American standards focus on regional requirements and specific safety features. No matter the standard, LV switchgear ensures you can connect or disconnect circuits, control electricity flow, and manage load allocation.

• Ensures controlled, safe, and reliable distribution of electrical power.

• Manages power across multiple circuits for flexible operation.

• Protects systems by detecting faults and isolating affected circuits quickly.

Ouxu Electric stands out in the LV Switchgear Selection Guide. The company invests heavily in research and development, with a team of senior engineers and a global reach. You benefit from innovative solutions that meet international standards and adapt to diverse environments.

Why Selection Matters

Choosing the right switchgear is critical for your operation. If you select the wrong type, you risk unsafe operations and equipment failure. Underestimating fault levels can lead to dangerous situations. Skipping selectivity checks may cause unnecessary shutdowns, affecting production. Ignoring thermal effects from harmonics can result in overheating and reduced lifespan. Failed inspections and unexpected downtime disrupt your workflow. You may face expensive retrofits to fix these issues.

• Unsafe operations and equipment failure

• Unnecessary shutdowns and production loss

• Overheating and reduced switchgear lifespan

• Failed inspections and costly retrofits

The LV Switchgear Selection Guide helps you avoid these problems. Ouxu Electric’s advanced products and global expertise ensure you get reliable, safe, and efficient solutions for your facility.

Electrical Ratings and Protection Features

Image Source: unsplash

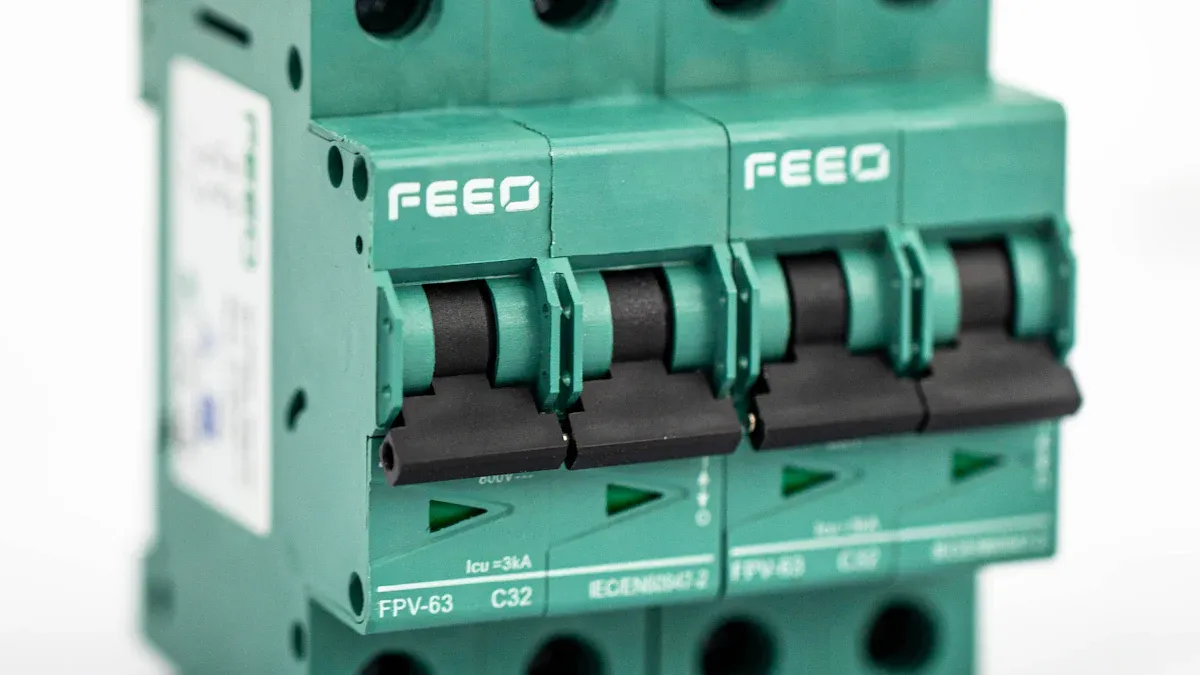

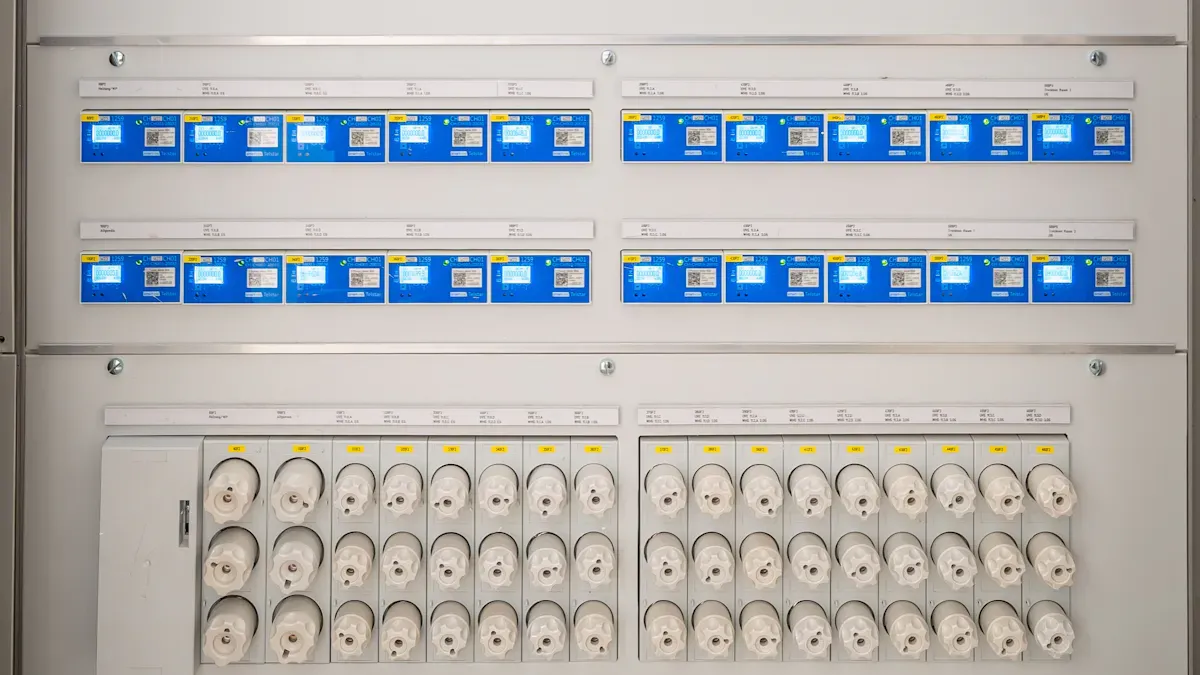

When you select LV switchgear, you must understand the importance of electrical ratings and protection features. These factors determine how well your switchgear will perform and how safe your facility will be. The LV Switchgear Selection Guide helps you focus on the right specifications for your application.

Voltage and Current Ratings

You need to match the voltage and current ratings of your switchgear to your system’s requirements. LV switchgear typically operates at voltages below 1,000 volts. Common voltage levels include 230V, 400V, 480V, and 690V. In industrial and commercial settings, these ratings ensure that your equipment can handle the electrical load safely.

• LV switchgear handles voltages up to 1,000 volts.

• You often see current ratings from a few hundred amps up to 6,300 amps, depending on the application.

You should always select switchgear with ratings that exceed your maximum expected load. Experts recommend a 25% safety margin above your highest load. This practice prevents failures during heavy use and extends the life of your equipment.

Ouxu Electric’s GGD, GCS, and GCK low-voltage switchgear offer a wide range of voltage and current ratings. For example, the GGD switchgear supports up to 4,000A, while the GCS and GCK models can reach up to 6,300A. These products provide reinforced insulation barriers, mechanical interlocks, and clear labeling to enhance safety and simplify maintenance.

Short-Circuit and Overload Protection

Short-circuit and overload protection are critical for preventing damage and ensuring safety. You must check the short-circuit withstand capacity of your switchgear. The IEC 61439 standard sets benchmarks for these ratings.

Ouxu Electric’s XGN15-12, XGN66-12, and KYN61-40.5 switchgear meet or exceed these standards. For example, the XGN15-12 can withstand a short-time current of 20kA for 3 seconds, while the KYN61-40.5 handles up to 31.5kA. These products use high-quality circuit breakers and advanced protection relays to detect faults quickly and isolate affected circuits. This feature reduces the risk of fire and equipment damage.

You also benefit from built-in overload protection. Ouxu Electric’s switchgear includes molded case circuit breakers and smart meters that monitor current and voltage in real time. If an overload occurs, the system disconnects the circuit to prevent overheating and failure.

Insulation and Thermal Stability

Insulation and thermal stability keep your switchgear safe during normal operation and fault conditions. High-quality insulation materials prevent electrical faults and maintain performance in harsh environments.

Ouxu Electric uses these advanced materials in its switchgear designs. For example, the GCS and GCK cabinets feature reinforced insulation and modular construction. This design ensures that heat does not build up inside the cabinet, even during heavy loads. The XGN66-12 and KYN61-40.5 models offer high thermal stability, which is essential for industrial parks, mining, and chemical plants.

You should always check the insulation class and thermal rating when you use the LV Switchgear Selection Guide. Proper insulation prevents breakdowns and extends the service life of your equipment.

Tip: Always verify that your switchgear meets or exceeds the required ratings for your application. This step ensures safety, reliability, and compliance with industry standards.

By focusing on voltage and current ratings, short-circuit and overload protection, and insulation and thermal stability, you can select the right switchgear for your needs. Ouxu Electric’s products provide robust protection features and reliable performance, making them a strong choice for modern electrical systems.

Safety Standards and Compliance

Image Source: unsplash

International and Local Certifications

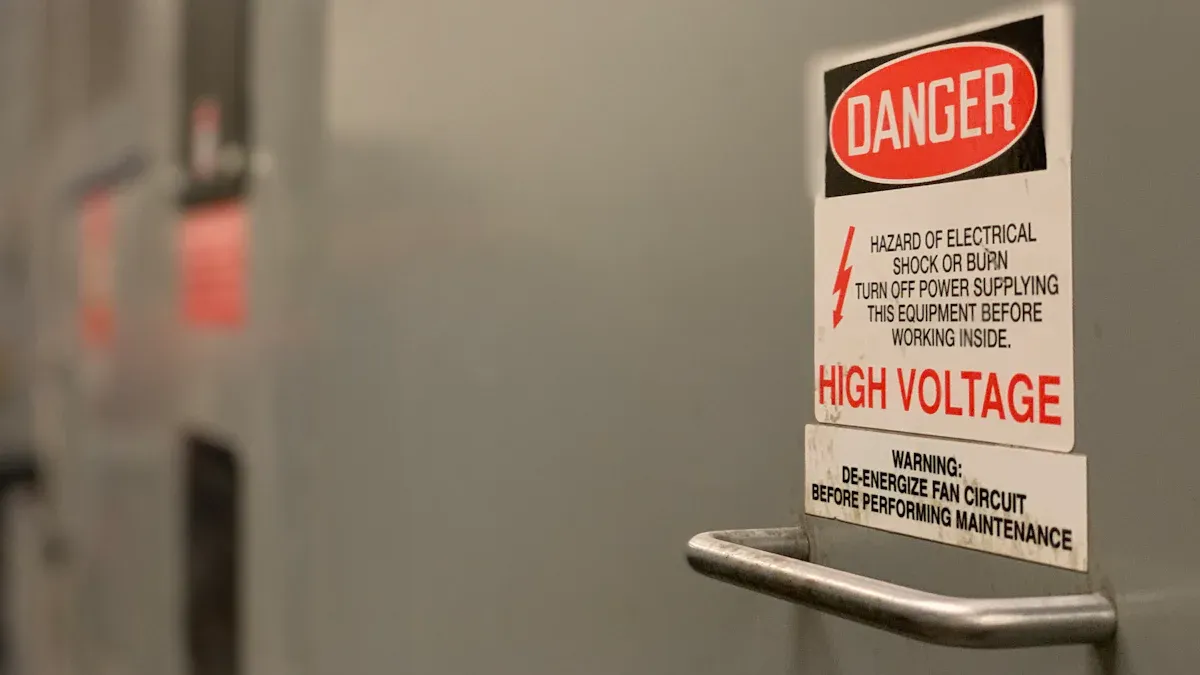

You must always check that your LV switchgear meets international and local safety standards. These certifications protect people, equipment, and your business. The most recognized standards include IEC (International Electrotechnical Commission), TISI (Thailand Industrial Standards Institute), and CE (Conformité Européenne). Each standard sets strict requirements for electrical safety, performance, and environmental impact.

Note: Failing to meet these standards can lead to serious consequences:

• Increased safety risks to human life

• Equipment failures and fire hazards

• Legal liabilities and penalties

• Project delays due to non-compliant panels

• Disputed insurance claims

• Loss of business continuity and credibility

You should always select switchgear that carries the right certifications for your region. For example, IEC standards ensure global acceptance, while TISI is essential for projects in Thailand. CE marking is required for products in the European market.

Ouxu Electric’s Compliance and Quality

Ouxu Electric places a strong focus on compliance and quality. The company has obtained dozens of patents and passed several key certifications:

• ISO9001 for quality management

• ISO14001 for environmental management

• CCC for product safety

You benefit from Ouxu Electric’s commitment to innovation and industry leadership. The company’s achievements in patents and standards show its dedication to reliable and safe products.

Ouxu Electric uses a detailed quality assurance process to ensure every product meets global standards. The process includes step-by-step factory testing before shipment. This approach reduces the risk of errors and ensures high-quality performance.

By choosing Ouxu Electric, you gain peace of mind knowing your switchgear meets strict safety and compliance requirements. This helps you avoid legal issues, project delays, and safety hazards in your facility.

Environmental and Installation Considerations

Adaptability to Harsh Conditions

You must consider the environment where you install LV switchgear. Industrial parks and infrastructure projects often face tough conditions. These can affect the performance and safety of your equipment. Common environmental factors include:

• Humidity

• High temperatures

• Dust

• Corrosive gases

• Altitude

• Pollution

• Mechanical impacts

Moisture and corrosive atmospheres can damage electrical components. High humidity may cause insulation breakdown. Dust and pollution can block ventilation and lead to overheating. Ouxu Electric designs switchgear to handle these challenges. For example, the medium-voltage cabinets use 304 stainless steel enclosures to resist corrosion. The low-voltage cabinets have epoxy powder coatings that protect against humidity and heat. You also get a temperature and humidity controller with a heater. This system automatically dehumidifies when humidity rises above 75%. These features help your switchgear last longer and work safely in harsh environments.

Space and Layout Requirements

You need to plan your installation space carefully. LV switchgear comes in different sizes and configurations. Compact designs save valuable floor space, especially in crowded industrial parks or commercial buildings. Ouxu Electric offers modular switchgear that fits tight spaces without sacrificing performance. You can choose cabinets with flexible layouts to match your facility’s needs. Always check the dimensions and allow enough room for ventilation and safe operation.

Tip: Leave clear access paths for maintenance and emergency shutdowns. Good layout planning improves safety and reduces downtime.

Maintenance and Serviceability

Easy maintenance keeps your switchgear reliable. You should select products with features that support quick inspections and repairs. Ouxu Electric’s switchgear includes remote monitoring systems. You can use a mobile app to get real-time alerts for overcurrent or overvoltage events. This helps you spot problems early and schedule maintenance before failures occur. The modular design allows you to replace parts quickly, reducing downtime. Regular cleaning and inspection prevent dust buildup and ensure all safety features work as intended.

By considering these environmental and installation factors, you ensure your LV switchgear operates safely and efficiently, even in demanding conditions.

Reliability and Future-Proofing

Durability and Mechanical Life

You need switchgear that stands the test of time. Durability means your equipment keeps working, even in tough conditions. Mechanical life measures how many times you can operate the switchgear before it needs replacement. Ouxu Electric designs switchgear with strong materials and advanced engineering. For example, the XGN15-12 switchgear offers a mechanical life of up to 2,000 operations. The KYN61-40.5 model lasts for more than 20 years in service. These products use reinforced steel, high-quality insulation, and reliable circuit breakers.

You get peace of mind knowing your switchgear will not fail during critical operations. Strong mechanical life reduces maintenance costs and downtime. You can trust Ouxu Electric’s products to deliver reliable performance year after year.

Tip: Always check the mechanical life rating before you buy switchgear. This ensures you select equipment that matches your facility’s demands.

Scalability and Upgrades

Your facility may grow or change over time. You need switchgear that adapts to new requirements. Ouxu Electric’s modular designs make expansion easy. You can add new units or upgrade existing ones without major disruptions. The GCS and GCK models feature interchangeable drawers and flexible layouts. You replace faulty units in minutes and expand your system as needed.

• Modular cabinets allow quick upgrades.

• Flexible layouts fit changing facility needs.

• Intelligent monitoring supports future automation.

You stay ready for new technology and increased loads. Ouxu Electric’s switchgear helps you future-proof your electrical system. You avoid costly replacements and keep your operations running smoothly.

Why Reliability and Future-Proofing Matter

Reliable switchgear protects your investment. Future-proof designs let you adapt to new challenges. Ouxu Electric’s products combine durability and scalability, giving you confidence in your power distribution system. You secure long-term value and operational safety for your facility.

Application Matching: Ouxu Electric Solutions

Industrial and Commercial Use Cases

You need to match the right switchgear to your specific application. Industrial parks, factories, and commercial buildings each have unique power needs. For example, an industrial park in Southeast Asia faced high humidity and needed reliable power for electronics and food processing plants. Ouxu Electric provided GGD low-voltage switchgear and KYN28A-12 medium-voltage switchgear, both designed to resist corrosion and support remote monitoring. This solution improved reliability and reduced downtime for all businesses in the park.

In commercial buildings, you often need compact switchgear that fits tight spaces and supports lighting, elevators, and HVAC systems. Ouxu Electric’s GGD low-voltage switchgear is a strong choice for these environments. For mining or chemical plants, you need equipment that withstands dust, vibration, and harsh chemicals. The XGN15-12 and XGN66-12 models offer high protection and durability.

Ouxu Electric’s customer service team supports you from selection to installation, ensuring your switchgear matches your site’s needs.

Product Selection Guide (GGD, GCS, GCK, XGN15-12, XGN66-12, KYN61-40.5)

When you select switchgear, you should follow these steps:

1. Technical Specification Alignment: Match the rated current and short-circuit strength to your transformer output. This prevents safety hazards and avoids overspending.

2. Environmental and Site Conditions: Check if your site has high humidity, dust, or corrosive air. Choose materials and cooling systems that fit your environment.

3. Total Cost of Ownership: Look at maintenance and spare parts costs, not just the purchase price.

You should also consider:

• Nominal voltage and continuous current

• Available short-circuit current

• Grounding method

• Expected load growth

• Enclosure and protection needs

• Required protection functions

• Digital integration for monitoring

Here is a quick guide to Ouxu Electric’s main products:

You can review Ouxu Electric’s case studies and customer service stories to see how these solutions work in real projects. This approach helps you choose the best switchgear for your facility’s needs.

Practical Selection Process

Step-by-Step Guide

You can follow a clear process to select the right switchgear for your facility. The LV Switchgear Selection Guide helps you make informed decisions. Start by identifying your maximum load and fault levels. Match the short-circuit rating and busbar capacity to these values. Allow extra capacity for starting currents and future expansion. Assess your site’s environment. Check for temperature extremes, humidity, dust, vibration, and chemical exposure. Choose enclosures and IP ratings that fit indoor or outdoor locations.

Review reliability and maintenance needs. Select modular or withdrawable switchgear for easy inspection and quick repairs. Look for designs that minimize downtime. Consider integration with automation systems. Modern switchgear connects with SCADA, EMS, and PLCs for fast fault detection and energy tracking.

Ouxu Electric supports you throughout this process. You receive customized solutions, including product drawings and test reports. Technical support includes bilingual manuals and remote guidance by video call. This ensures smooth installation and commissioning.

Common Mistakes to Avoid

You can avoid costly errors by following best practices. Many engineers overlook site preparation. Always ensure a clean, level foundation with proper ventilation and working space. Incorrect cable terminations cause faults. Use calibrated tools and seal cable entries. Poor grounding leads to safety risks. Establish low-resistance ground connections according to local codes.

Some users ignore manufacturer guidelines. Always refer to the installation manual for your switchgear. Neglecting environmental factors can shorten equipment life. Choose enclosures rated for harsh conditions. Skipping safety protocols puts personnel at risk. Only qualified staff should handle installations and follow safety procedures. Never overlook testing and commissioning. Conduct thorough tests before energizing your equipment.

• Inadequate site preparation

• Incorrect cable terminations and connections

• Poor grounding and earthing practices

• Ignoring manufacturer’s guidelines

• Neglecting environmental considerations

• Skipping safety protocols

• Overlooking testing and commissioning

Tip: You can rely on Ouxu Electric’s customer service for guidance and troubleshooting. Regular follow-up visits and remote support help you maintain safe and efficient operations.

The LV Switchgear Selection Guide gives you a structured approach. You avoid common mistakes and benefit from expert support, ensuring your electrical system operates safely and reliably.

You can select the right LV switchgear by focusing on safety, compliance, and your application’s needs. Follow these best practices:

1. Choose switchgear with internal-arc mitigation and clear safety labeling.

2. Use lockout/tagout procedures and regular inspections.

3. Ensure proper earthing and select enclosures with the right IP rating.

4. Start with IEC 61439 guidelines for compliance.

Ouxu Electric’s solutions give you advanced safety, reliability, and support for every project.

Ready to upgrade your power system? Contact Ouxu Electric for innovative switchgear solutions.

FAQ

What is the most important rating to check when selecting LV switchgear?

You should check the short-circuit withstand rating first. This rating shows how much fault current the switchgear can handle safely. It protects your equipment and keeps your facility safe.

How does Ouxu Electric ensure compliance with international standards?

Ouxu Electric tests every product in the factory. You get switchgear certified to IEC, CE, and TISI standards. This process reduces project risks and ensures reliable performance.

Can I upgrade my switchgear if my facility expands?

You can upgrade Ouxu Electric’s modular switchgear easily. Add new units or replace parts without major downtime. This flexibility supports future growth and changing needs.

What maintenance features help reduce downtime?

You benefit from modular designs and remote monitoring. These features allow quick inspections and fast repairs. You can spot issues early and schedule maintenance before failures occur.

Which Ouxu Electric switchgear is best for harsh environments?

You should choose the XGN15-12 or XGN66-12 models. These products resist humidity, dust, and corrosion. They work reliably in mining, chemical plants, and industrial parks.
