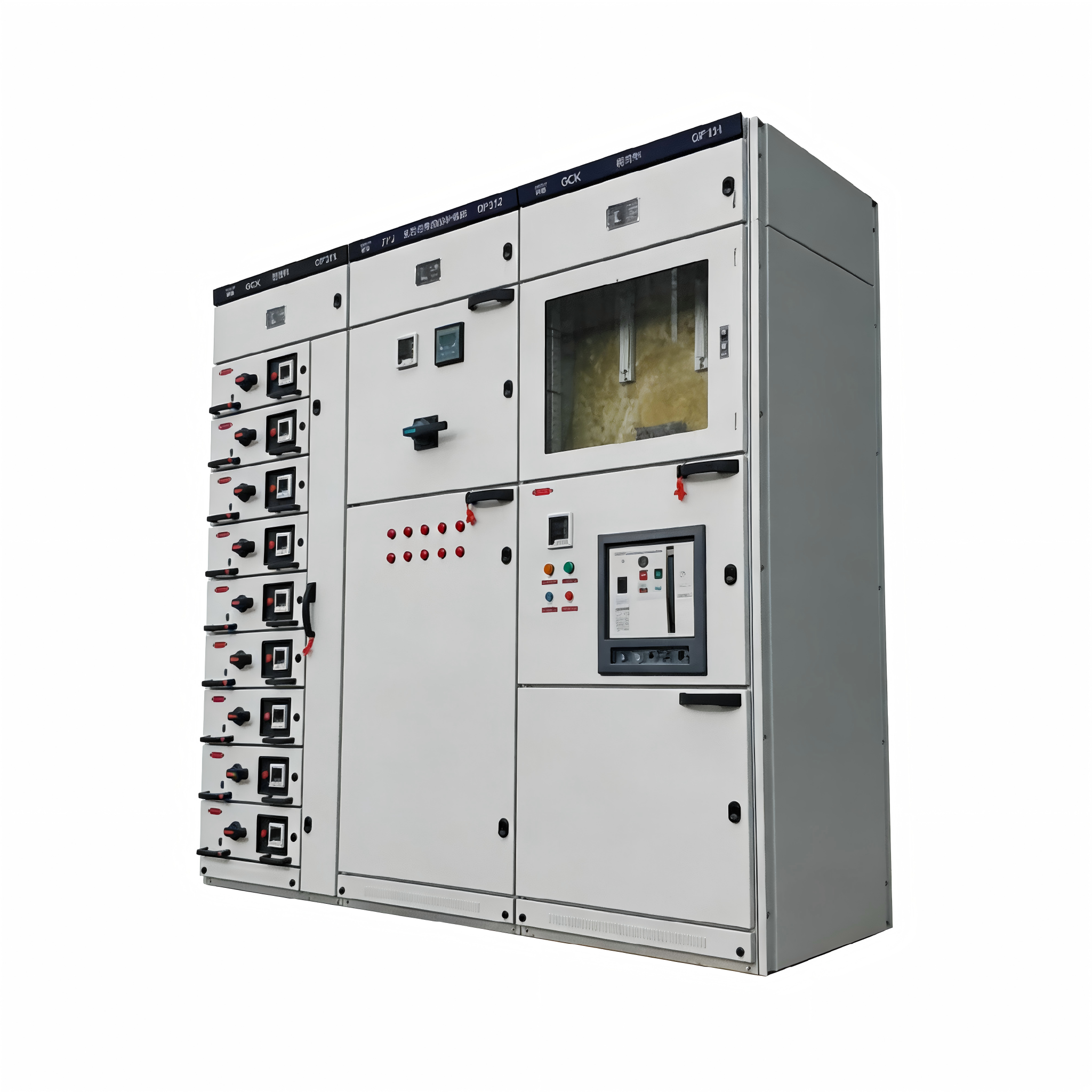

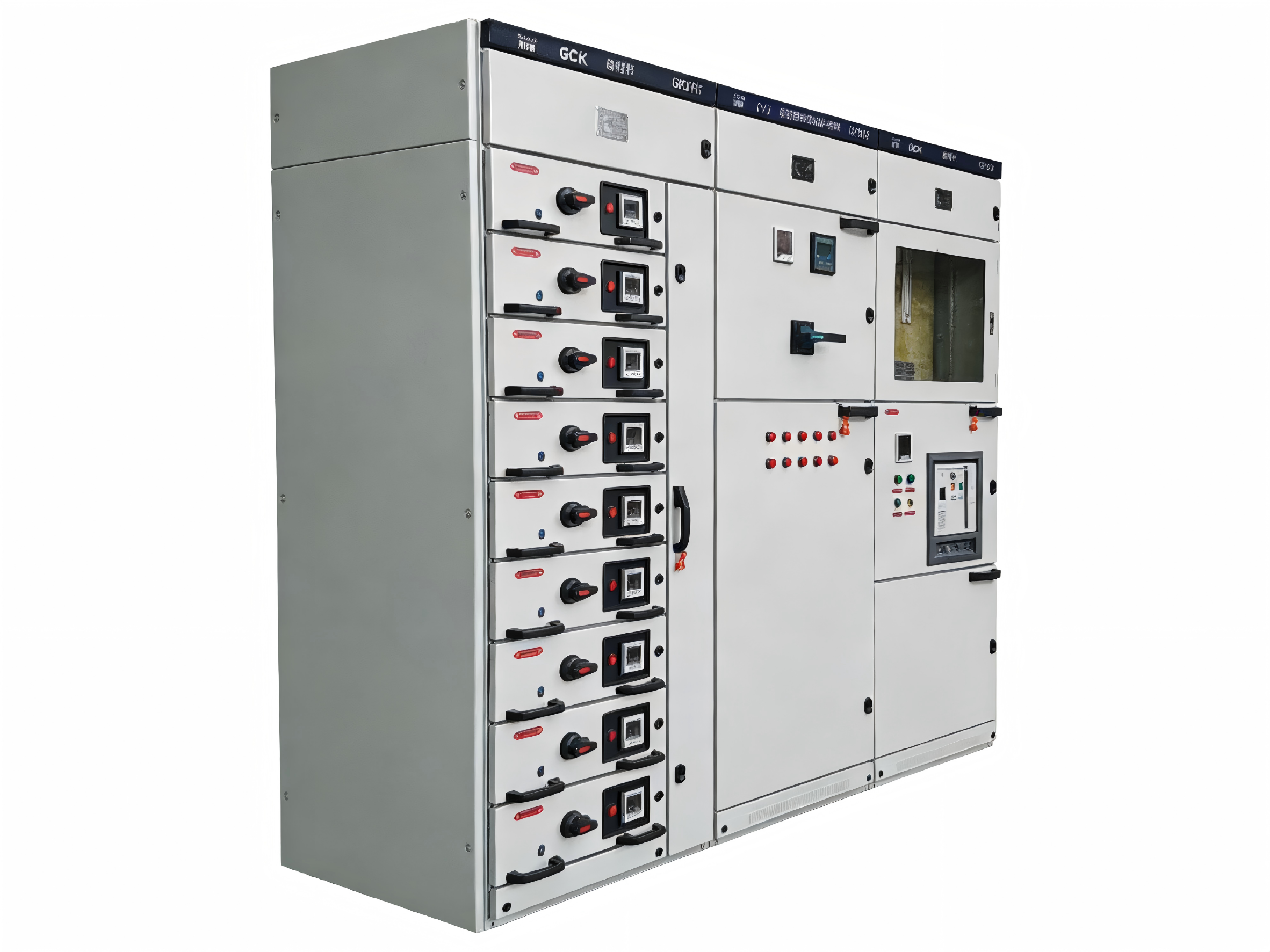

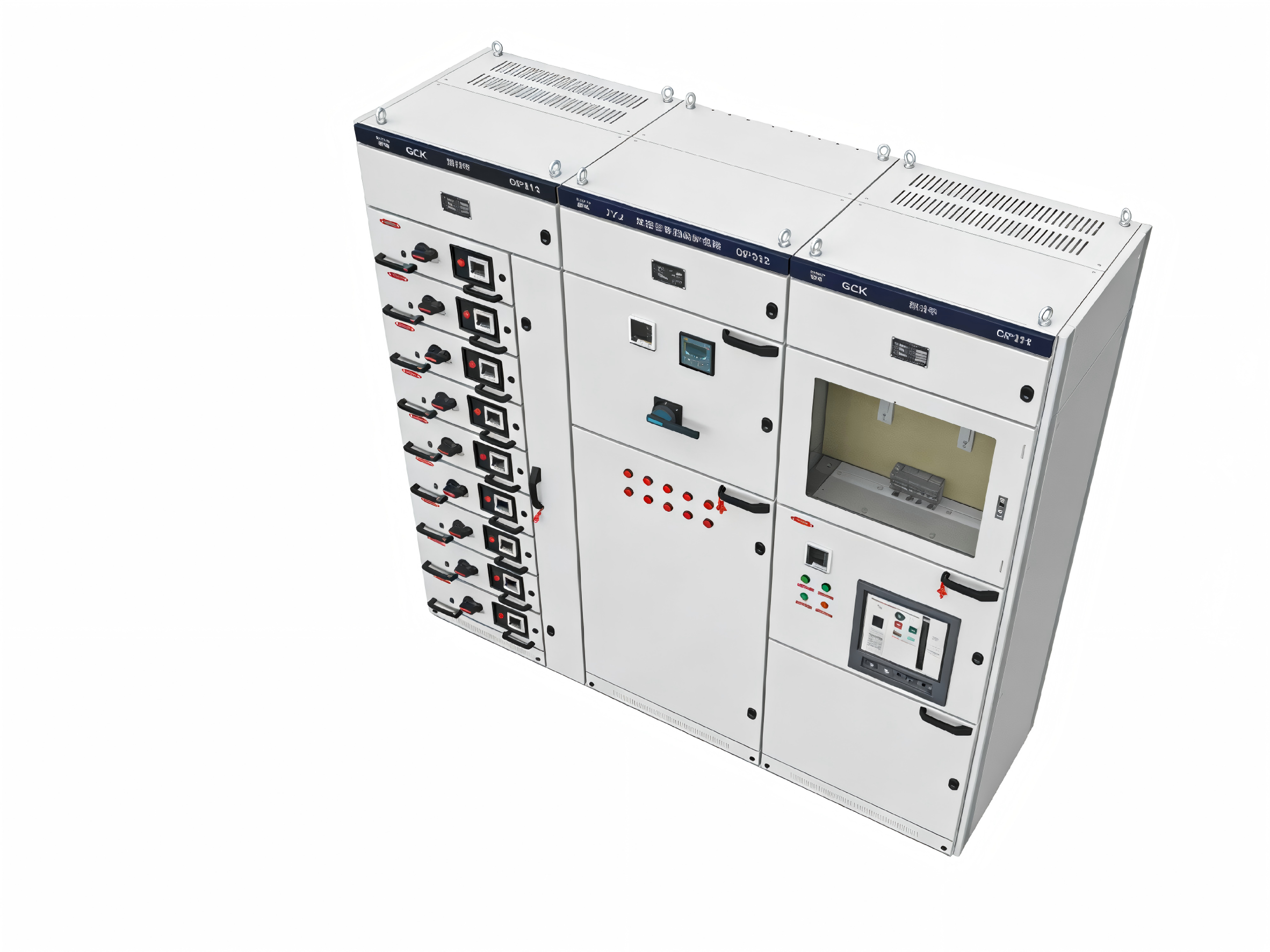

Letters /Numb

English meaning.

Core Explanation (Technology+Market Value)

G

Low-voltage sw itchgear

Define the voltage level as 0.4kV low voltage,suitable for the power distribution and control requirements at the end of the low voltage distribution network, different from medium and high voltage switchgear

C

Drawer type/Motor control

Core structural features:The components are integrated into the withdraw able drawer,while also taking into account the motor control function,adapting to the distribution and control scenarios of industrial motor groups.

K

open structure/Withdrawable

Emphasize that the cabinet adopts a modular pull-out design,and the draw ers can be pulled out of the cabinet as awhole, Realize uninterrupted replacement during maintenance to improve pow er supply reliability

□

Main circuit scheme number

Comprehensive definition of product:a complete set of switchgear with 0.4KV low voltage,w ithdraw able structure,and balancing distribution and motor control, which is the "reliability+flexibility"in industrial low voltage distribution The benchmark product for activity.

GCK

Combination code

Advantage dimension

detailed description

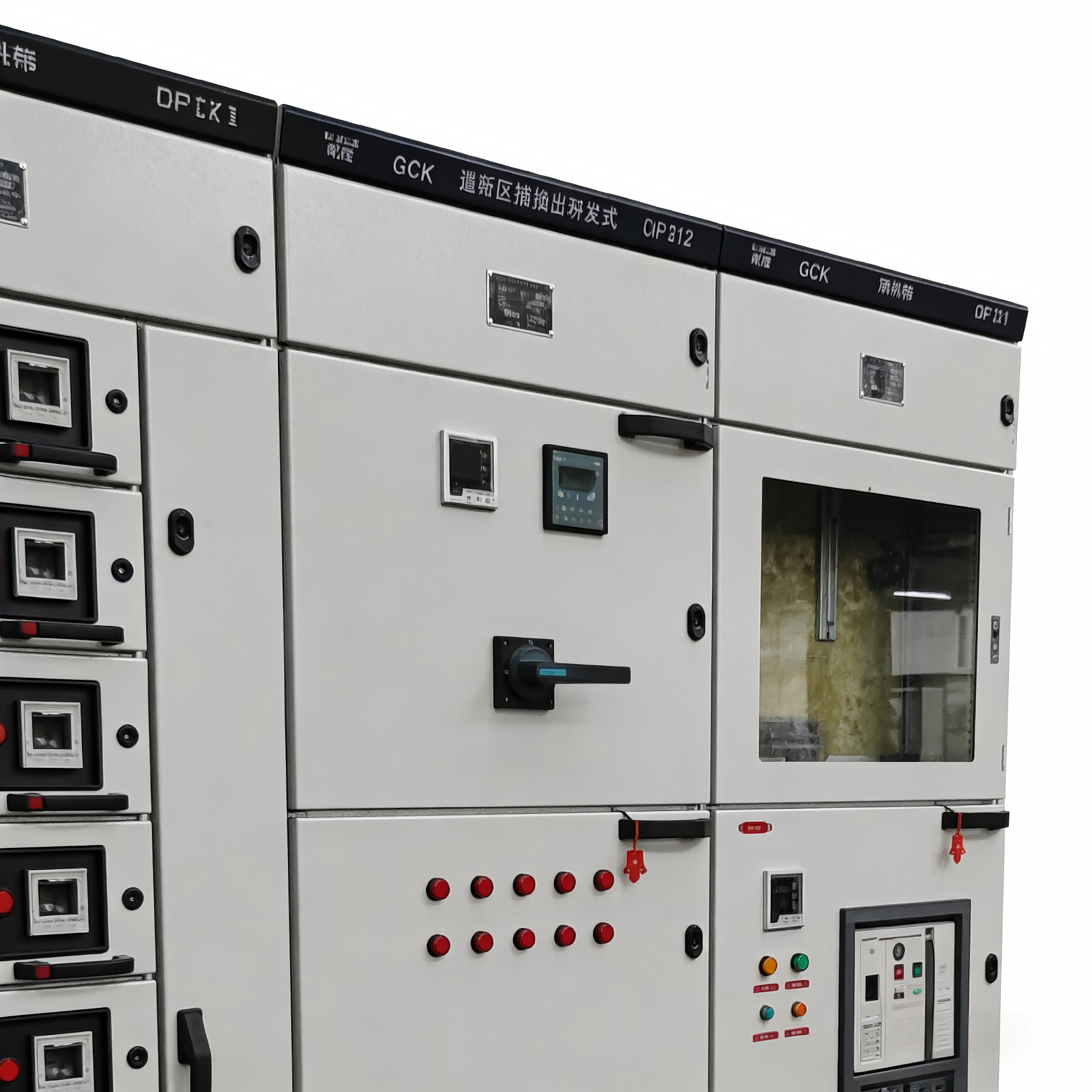

Drawer style flexible operation and maintenance

The core components are integrated into standard drawer units,supporting live plugging and unplugging,and fault units

Modular combination design

Can be quickly replaced,achieving uninterrupted maintenance of the system and increasing operation and maintenance efficiency by 60%;

Multiple security protections

100% interchangeable drawers of the same specfications,reducing spare parts inventory costs by 30%."

Excellent electrical performance

The cabinet is assembled with C-shaped profiles,and the drawer units are divided into standard 8E/16E/20E etc

Intelligent adaptation upgrade

Modular,flexible combination of incoming cabinet,outgoing,cabinet,capacitor compensation cabinet,frequency conversion cabinet

parameter name

Standard configuration.

rated voltage

AC 0.4kV/0.66kV(50Hz)

rated current

Busbar: 1000A~5000A

Branch busbar: 630A-1600A

Rated short-time withstand current

Busbar50kA, 80kA (effective value) 1m

Branch busbar: 30kA, 50kA (effective value) 1m

Rated peak withstand current

Busbar:105kA/0.1s、140kA/0.1s、176kA/0.1s

Branch busbar:63kA/0.1s、105kA/0.1s

Drawer module

8E、12E、16E、20E、24E(1E=25mm)(Customizable)

Protection level

IP30(cabinet);IP40(customized)

Cabinet material

2.0mm cold-rolled steel plateelectrostatic spray anti-corrosion

Applicable
Environment

Temperature-5℃~+40℃,humidity≤90%(no condensation),altitude ≤2000m，Within a short period of time (24 hours), the temperature should not exceed 70 ℃

execution standard

GB/T7251.2、IEC60439-1
