You use a JP Comprehensive Distribution Box to manage and protect your electrical system. This smart device combines power distribution, metering, protection, and reactive power compensation in one compact unit. Ouxu Electric leads the field with innovative solutions that support both urban and rural grids. The box suits outdoor installations and withstands harsh environments.
The global market for these devices reached 3.62 billion USD in 2025 and will grow at 3.2% CAGR, showing strong demand.
Main features include fast response time, high protection level, and customizable capacity.
Specification | Value |
|---|---|
Rated Voltage | 400 V |
Rated Frequency | 50 / 60 Hz |
Protection Level | IP65 (Outdoor) |
Key Takeaways
The JP Comprehensive Distribution Box combines power distribution, metering, and protection in one unit, enhancing safety and efficiency.
Its robust design, made from durable materials, ensures reliable performance in harsh outdoor conditions.
Smart monitoring features allow for real-time alerts and remote control, helping you respond quickly to issues.
The box's modular design simplifies installation and maintenance, saving you time and reducing costs.
It is suitable for various applications, including urban grids, industrial settings, and renewable energy systems, making it a versatile choice.

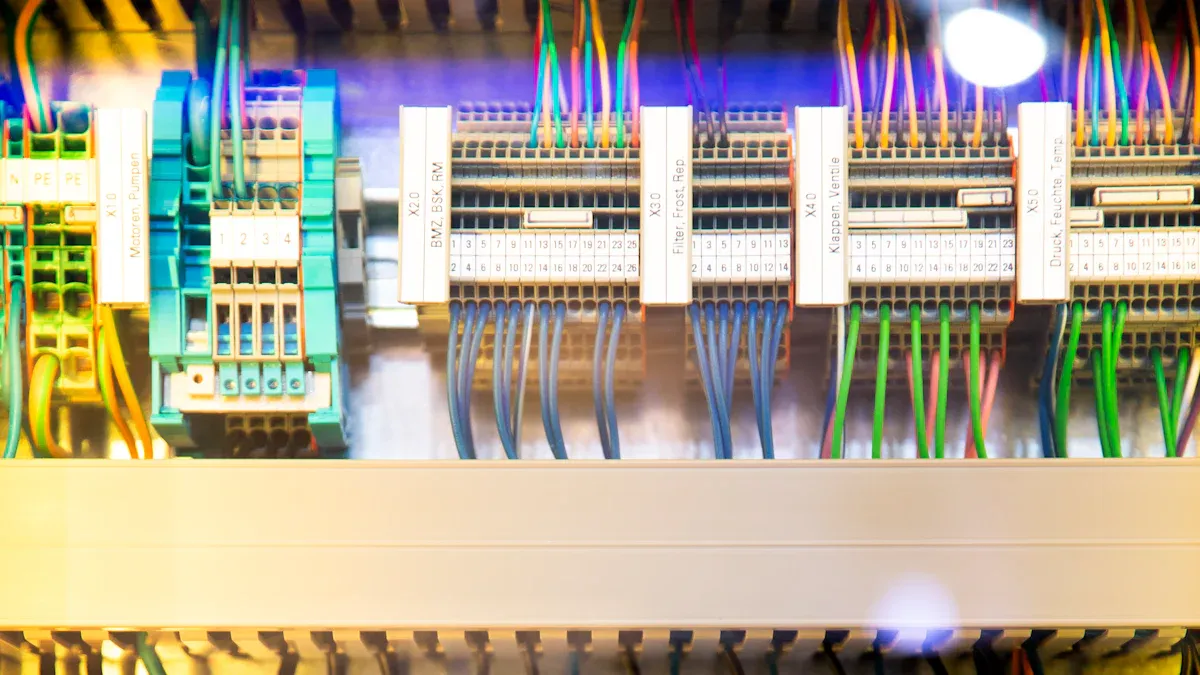

Features of Comprehensive Distribution Box
Image Source: unsplash
Structural Design & Materials
When you choose a Comprehensive Distribution Box from Ouxu Electric, you get a product built for strength and durability. The cabinet uses 1.5-2.0mm cold-rolled steel plate, which gives it a solid structure. You can also select a 304 stainless steel version if you need extra corrosion resistance. The compact design saves space and looks modern, making it suitable for both pole-mounted and ground installations. The box measures 800×600×2200mm, so it fits well in many outdoor settings. This design helps you install the box easily, even in areas with limited space.
Safety & Protection
You want your electrical system to stay safe and reliable. The Comprehensive Distribution Box offers multiple layers of protection to keep your equipment and people secure. Here is what you get:
Overload protection
Overvoltage protection
Leakage protection
These features work together to prevent accidents and equipment damage. The box also integrates power distribution, metering, control, and reactive power compensation. This multifunctional approach means you do not need separate devices for each function.
The box meets strict safety certifications and standards worldwide. You can see the main certifications in the table below:
Region | Standards |
|---|---|
North America | UL 50 (enclosures), UL 508A (industrial control panels) |
Europe | CE marking, IEC/EN 61439 series |
China | GB 7251 (based on IEC 61439) |
Australia | AS/NZS 61439 |
International | CB Scheme certification for global market access |
The IP54 protection rating means the box resists dust and water splashes. This is important for outdoor use because it keeps the internal components safe from harsh weather. You can trust the Comprehensive Distribution Box to work reliably in rain, dust, and changing temperatures.
Installation & Maintenance
You will find installation straightforward with the Comprehensive Distribution Box. The medium-sized cabinet fits on poles or on the ground, so you have flexibility in placement. The design allows for quick wiring and easy access to all components. You can perform routine checks and maintenance without special tools. The box supports both column and ground installations, which helps you adapt to different project needs.
Maintenance is simple because the box uses modular components. If you need to replace a part, you can do it quickly. The sturdy materials and weather-resistant design reduce the need for frequent repairs. This saves you time and lowers your maintenance costs.
Intelligence & Monitoring
Modern power systems need smart solutions. The Comprehensive Distribution Box from Ouxu Electric includes remote monitoring and automatic compensation features. You can track the status of your electrical system in real time. If there is a problem, you receive alerts right away. This helps you respond quickly and avoid downtime.
The box supports remote control, so you can adjust settings without being on-site. Automatic compensation improves energy efficiency by balancing reactive power. These intelligent features make your power distribution system safer and more efficient.
Tip: Using a Comprehensive Distribution Box with smart monitoring helps you prevent problems before they affect your operations.
By choosing a Comprehensive Distribution Box, you get a product that combines strong materials, advanced protection, easy installation, and intelligent monitoring. This makes it a reliable choice for modern electrical systems.
Applications of Comprehensive Distribution Box
Image Source: pexels
Urban & Rural Power Grids
You can use a Comprehensive Distribution Box to upgrade both urban and rural power grids. This device helps you manage power distribution, metering, and protection in one unit. Its compact design fits well on outdoor transformer poles, making it ideal for grid renovation projects. The box supports reliable operation in different environments and follows strict safety and reliability standards. Here is a summary of its main applications in power grids:
Application Type | Description |
|---|---|
Metering | Concentrates measuring capabilities for effective power management. |
Distributes electrical power in urban and rural grids. | |
Reactive Power Compensation | Manages reactive power to improve system efficiency. |
Protection Functions | Provides short circuit, overload, overvoltage, and leakage protection. |
Design and Installation | Compact and suitable for outdoor transformer pole installation. |
You benefit from a solution that meets the needs of modern grid construction and supports safe, efficient, and reliable power delivery.
Industrial & Commercial Use
In industrial and commercial settings, you rely on the Comprehensive Distribution Box as a central hub for managing multiple electrical circuits. This box improves safety by reducing the risk of electrical faults. It also increases efficiency in power distribution, helping you optimize energy use. The space-saving design allows you to install it in various locations, even where space is limited. You can customize the box to fit your specific operational needs, making it a flexible choice for factories, shopping centers, and office buildings.
Tip: Using a Comprehensive Distribution Box in your facility helps you streamline operations and maintain a safer work environment.
Renewable Energy Systems
You can integrate a Comprehensive Distribution Box into renewable energy systems, such as solar or energy storage projects. The box connects with pole-mounted transformers and supports infrastructure upgrades for utility-scale projects. Its robust construction and advanced protection features make it suitable for harsh environments, including areas with high humidity, dust, or temperature extremes. The table below highlights its performance in challenging conditions:
Feature | Description |
|---|---|
IP Ratings | Rubber gaskets ensure watertight and dustproof cabinets. |
Temperature Control | Ventilation slots and optional cooling fans prevent overheating. |
Corrosion Resistance | Coated metal and stainless steel enclosures resist corrosion. |
Material | Strong materials withstand extreme weather and impacts. |
Features | Overload and lightning protection enhance safety. |
You can trust this box to deliver reliable performance and comply with local standards, whether you are working on a new solar farm or upgrading an existing grid.
Advantages Over Traditional Boxes
Enhanced Safety & Reliability
You gain a higher level of safety and reliability when you use Ouxu Electric’s JP comprehensive distribution box. The box combines multiple protection features, including short circuit, overload, overvoltage, and leakage protection. You do not need to install separate devices for each function. The integrated design reduces the risk of wiring errors and improves overall system stability. You benefit from a robust enclosure with IP54 protection, which shields your equipment from dust and water. The box’s advanced monitoring capabilities alert you to issues before they become serious. You can trust your electrical system to operate safely, even in harsh outdoor conditions.
Efficiency & Cost Savings
You save time and money by choosing the JP comprehensive distribution box. The modular design allows you to access components easily, which simplifies maintenance. You spend less time on repairs and routine checks. The intelligent monitoring system helps you detect problems early, reducing downtime. Traditional boxes often require complex installation and frequent maintenance, leading to higher long-term costs. The JP box supports longer maintenance cycles, so you do not need to inspect it as often. You avoid unnecessary expenses and keep your operations running smoothly.
Intelligent monitoring reduces downtime.
Modular design minimizes maintenance time and costs.
Longer maintenance cycles lower inspection frequency.
Traditional boxes involve more frequent checks and higher costs.
Note: Efficient maintenance and smart monitoring help you maximize your investment and minimize operational disruptions.
Versatility & Scalability
You can adapt the JP comprehensive distribution box to many different applications. The modular structure lets you expand your power distribution network as your needs grow. You can integrate the box into urban grids, industrial parks, or renewable energy systems. The flexible design supports easy upgrades and future expansion. You do not need to replace the entire system when your electrical load increases. The box’s versatility ensures you meet changing requirements without major modifications.
Tip: Choose a distribution box that grows with your business. Ouxu Electric’s JP comprehensive distribution box offers the flexibility you need for scalable power solutions.
Choosing the Right Comprehensive Distribution Box
Selection Criteria
You need to match the distribution box to your project’s requirements. Start by checking waterproof performance. Outdoor installations demand high IP ratings, such as IP54 or IP65, to protect against rain and dust. Practicality matters. Choose a box that balances safety, cost, and space. Reduce unnecessary circuits or poles to keep the size manageable.
Safety is essential. Look for overload protection, short circuit protection, and reliable circuit breakers. Configuration should include a main switch, room socket circuits, high-power appliance circuits, and lighting circuits. Review technical specifications carefully. Make sure the voltage and current ratings fit your system. Calculate bus bar ampacity for continuous current plus 125% of non-continuous loads. Consider temperature derating. Outdoor boxes can get much hotter than indoor ones, so check correction factors. The short-circuit current rating (SCCR) must meet or exceed the available fault current at your installation site.
Selection Criteria | Description |
|---|---|
Waterproof Performance | Ensures functionality in damp conditions; look for IP ratings like IP65 for protection. |
Practicality | Balancing safety with cost and space; consider reducing circuits and poles to manage size. |
Safety Considerations | Key features include overload protection, short circuit protection, and reliable circuit breakers. |
Configuration | Recommended setup includes a main switch, room socket circuits, high-power appliance circuits, and lighting circuits. |
Specification Criteria | Details |
|---|---|
Bus bars must be sized for continuous current plus 125% of non-continuous loads. | |
Temperature Derating | Outdoor boxes experience a temperature rise of 30-50°F above ambient, requiring correction factors. |
Short-Circuit Current Rating (SCCR) | Must be ≥ available fault current at the installation point, with specific SCCR levels for different applications. |
Tip: Always check the environmental ratings and technical specs before making your final choice.
Common Mistakes to Avoid
You can avoid common mistakes by planning ahead. Do not overlook waterproof ratings for outdoor installations. Failing to match voltage and current ratings to your system can cause safety issues. Skipping proper configuration may lead to inefficient power distribution.
Many users forget to consider temperature derating. Outdoor boxes heat up quickly, so you must account for this when sizing components. Ignoring SCCR can result in unsafe installations. You should also avoid choosing a box that is too large or too small for your needs.
Ouxu Electric helps you avoid these mistakes. You receive regular follow-up visits, remote technical support, and detailed installation manuals. Modular options allow easy customization for your project. If you need guidance, consult Ouxu Electric for tailored solutions and reliable after-sales support.
Regular follow-up visits keep your system running smoothly.
Remote technical support solves issues quickly.
Installation manuals guide you step by step.
Modular options make customization easy.
Note: Consulting Ouxu Electric ensures you select the right box and receive ongoing support for your electrical system.
You see that the JP Comprehensive Distribution Box stands out for its strong protection, smart monitoring, and flexible installation. You can use it in urban grids, industrial facilities, and renewable energy systems. The Asia-Pacific market shows rapid growth, especially for engineered boxes in data centers and energy storage. Ouxu Electric leads with innovative designs and reliable service. You get quality, safety, and efficiency in every product.
Explore Ouxu Electric’s solutions for your next project. Contact us to find the right distribution box for your needs.
FAQ
What is the main function of a Comprehensive Distribution Box?
You use a Comprehensive Distribution Box to manage power distribution, metering, and protection in one unit. It helps you improve safety and efficiency in your electrical system.
Can I install a Comprehensive Distribution Box outdoors?
You can install this box outdoors. It has a high IP rating and strong materials that protect against rain, dust, and temperature changes.
How do I maintain a Comprehensive Distribution Box?
You perform routine checks and replace modular parts when needed. The design allows you to access components easily, making maintenance quick and simple.
Does the Comprehensive Distribution Box support remote monitoring?
You can monitor your system remotely. The box sends real-time alerts and lets you adjust settings from a distance, improving your response time.
What certifications does the Comprehensive Distribution Box meet?
You find certifications like CE, UL, and IEC standards. These ensure the box meets global safety and quality requirements.
