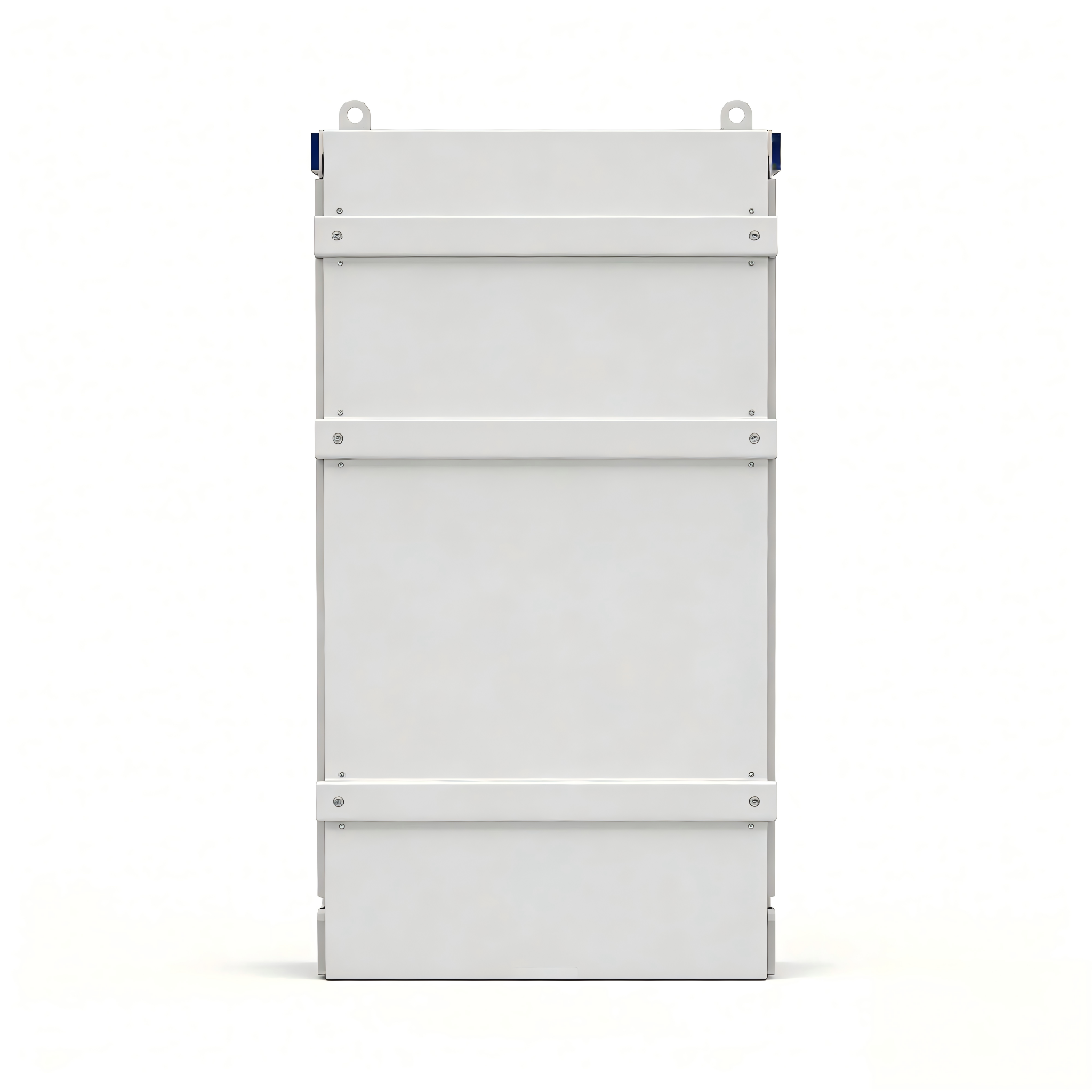

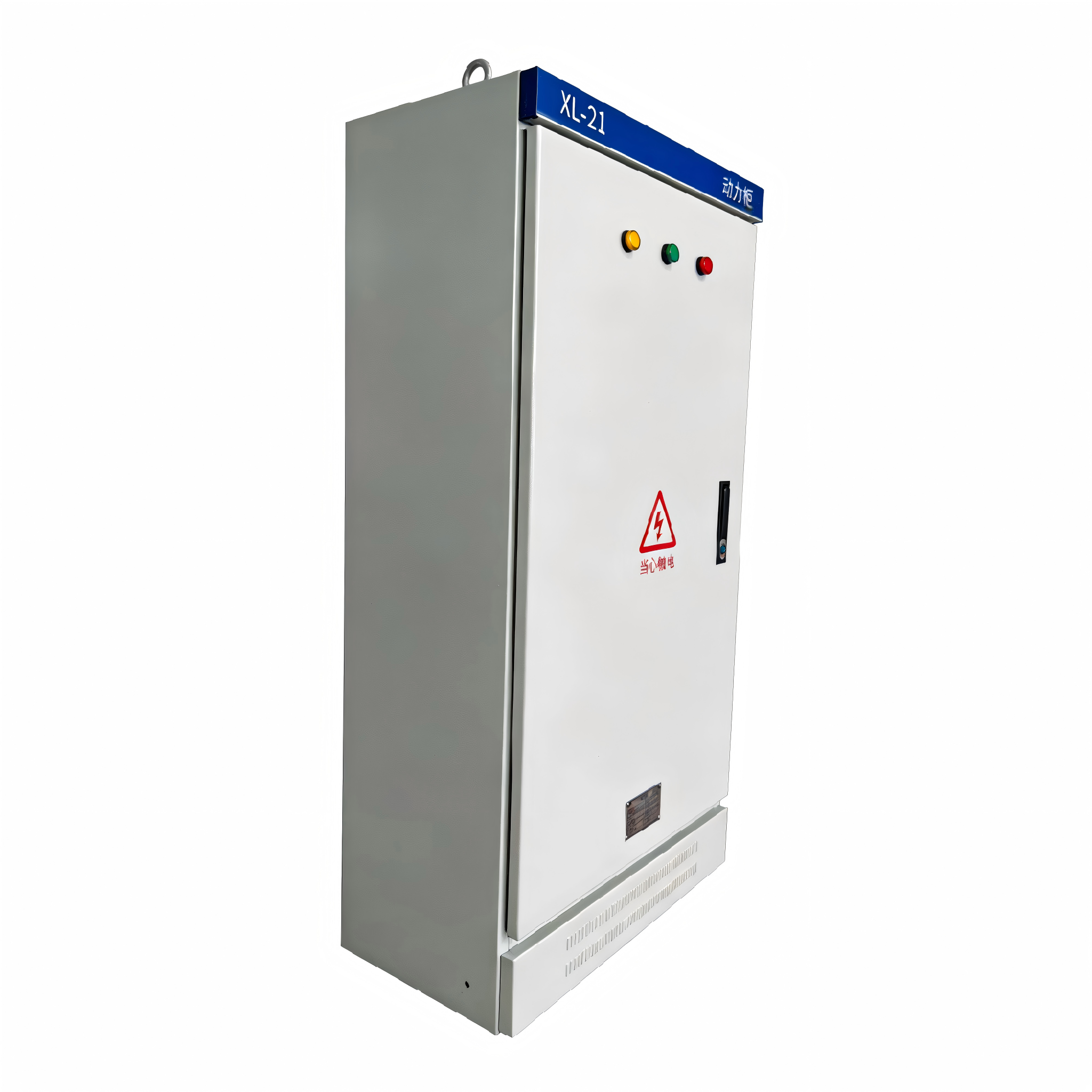

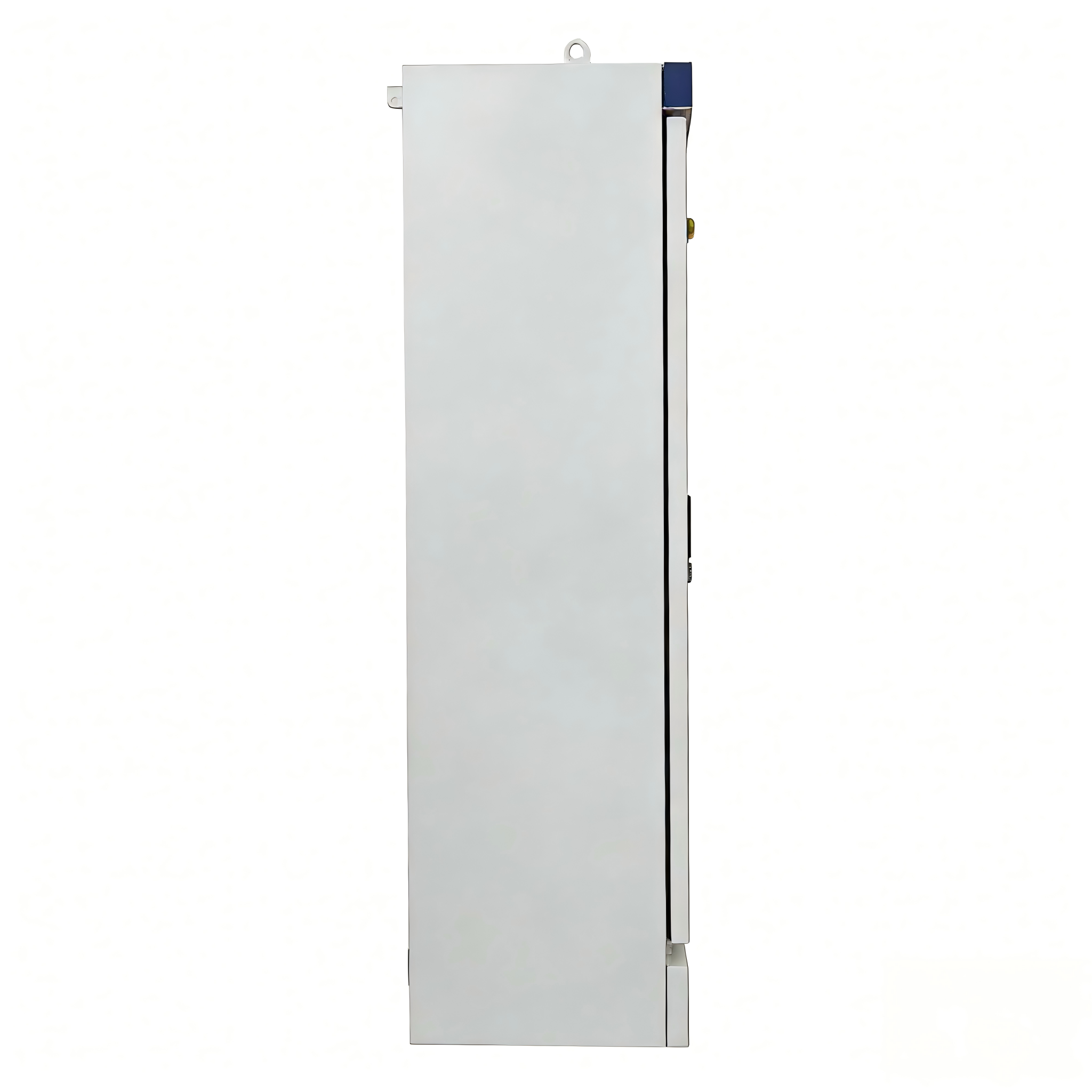

Compact PZ30 Lighting XL Power Lighting Box
Compact PZ30 Lighting XL Power Lighting Box
Compact PZ30 Lighting XL Power Lighting Box
Compact PZ30 Lighting XL Power Lighting Box
Compact PZ30 Lighting XL Power Lighting Box
Compact PZ30 Lighting XL Power Lighting Box
Compact PZ30 Lighting XL Power Lighting Box
Compact PZ30 Lighting XL Power Lighting Box
A low-voltage complete distribution equipment widely used in industrial and civil buildings, mainly used for control, protection, and monitoring of power circuits, and compatible with lighting circuit distribution
  • Ouxu

  • 500 units/month (adjusted according to model and order quantity)

  • 5 unit (30% deposit required for customized products)

  • China

  • 150-300

  • 600x400x1600-500x450x1900

  • Determine based on specific product models

库存: 0
Add to Basket
Inquire

More attributes

Series/Alphabet

core meaning

PZ30

Civil lighting dedicated distribution box (P=distribution,Z=lighting,30=modular series)

XL

Small pow er lighting box(X=power distribution, L=pow er/floor)

PZ30+XL

Lighting+pow er combination distribution system

Product Highlights

Advantage dimension

detailed description

Extremely compact design, easy to deploy first space

Modular compact structure,reducing volume by 30%, supporting wall mounted light and dark installations, suitable for confined spaces

Integrated lighting and power, suitable for multiple loads

Integrating lighting and power functions,adapting to multipleloads and voltages,single box multi-purpose, reducing costs and increasing efficiency

Flldimensional security protection,reliable operation

IP30 protection,bilt-in dual protection with optional leakage protection,reliable PE connection to eliminate security risks

Modular assembly,convenient operation and maintenance

Standard guide rail installation,equipped with transparent observation window,multi-directional knock off hole wiring for convenient operation and maintenance

Stable quality,adaptable to a wide range of environments

Stable quality of national standard components,wide temperature adaptability to multiple environments,and reliable operation in accordance with authoritative standards

Product Details

parameter name

Standard configuration

rated voltage

AC 220V(single-phase)/380V(three-phase),50Hz

rated current

Total incoming current:≤100A,branch Circuit current:10A63A

Number of circuits

6-40 seats (single row/double row/triple row available) Selection,modular grouping)

Electrical performance

Rated insulation voltage:690V,rated Short time withstand current:6.3kA1s

Protection level

IP30(indoor standard version);IP40(dustproofversion, optional)

Cabinet material

1.2mm cold-rolled steel plate(electrostatic spraying) Plastic);Optional flame retardant ABSl panel Cheng Plastic

Installation method

Wall mounted(open/concealed optional)

Applicable Environment

Temperature:-25℃~+40℃;wet Degree:s90%(no condens ation);sea Pull:s2000m;no explosion,strong Corrosive environment
