Advantage dimension | detailed description |
Flexible protection, adaptable to multiple scenarios | Supports both indoor and outdoor versions of design,with an IP30 protection level for indoor models and an IP30 protection level for outdoor models upgraded waterproof and dustproof structure up to IP54,sutable for humidity,dust,outdoor and other harsh conditions.Poor environment,no need to build additional protective shelters. |

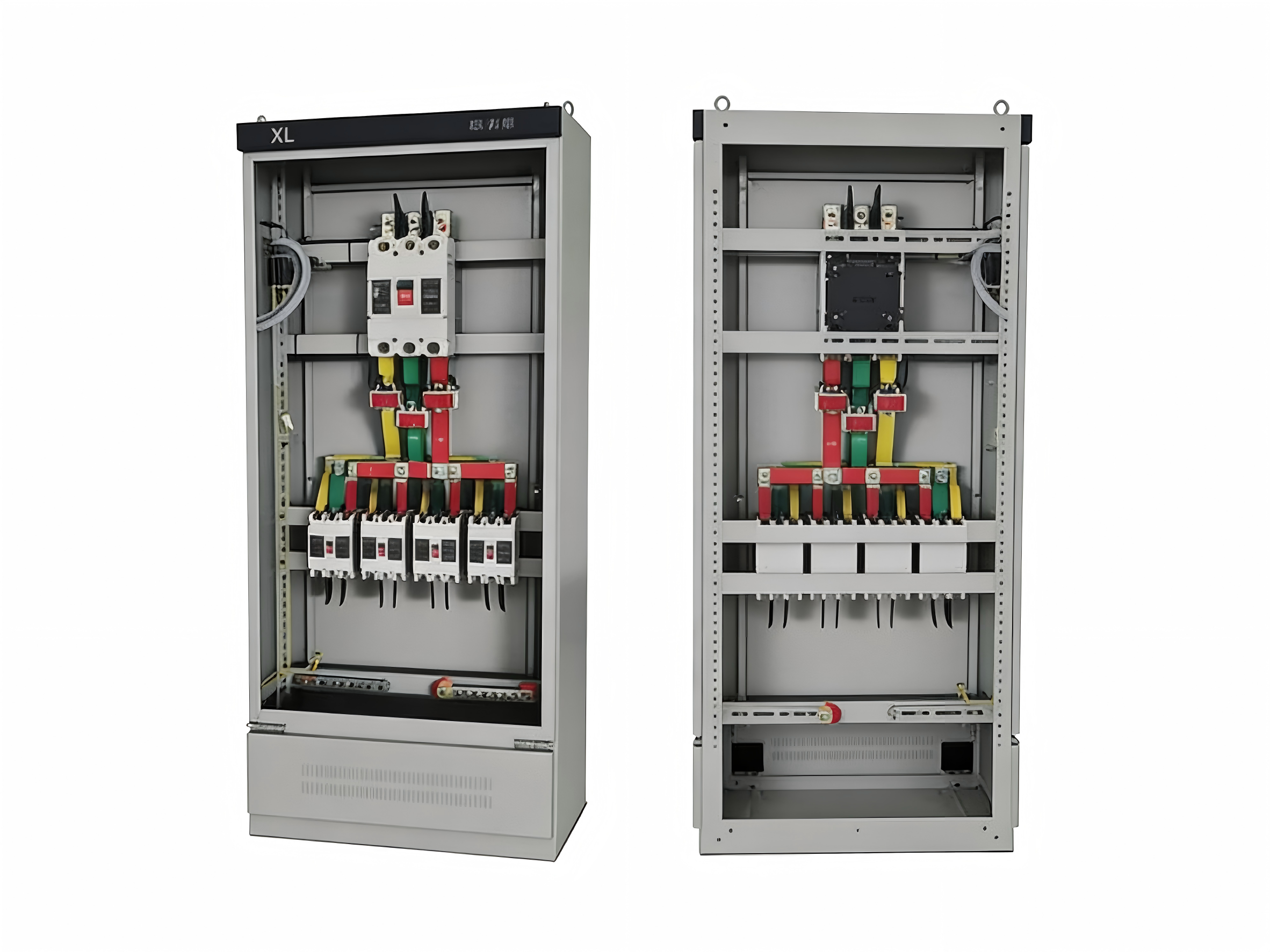

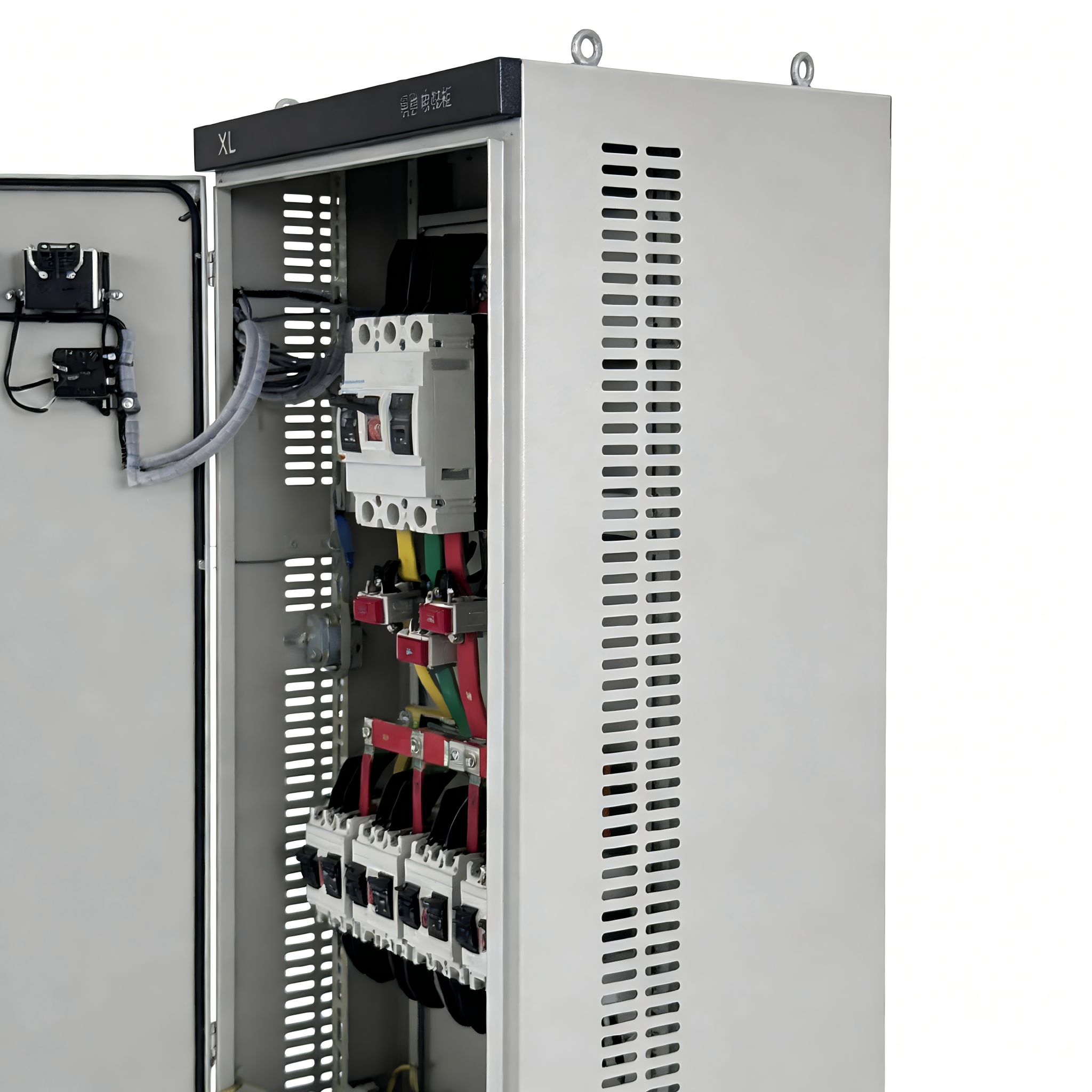

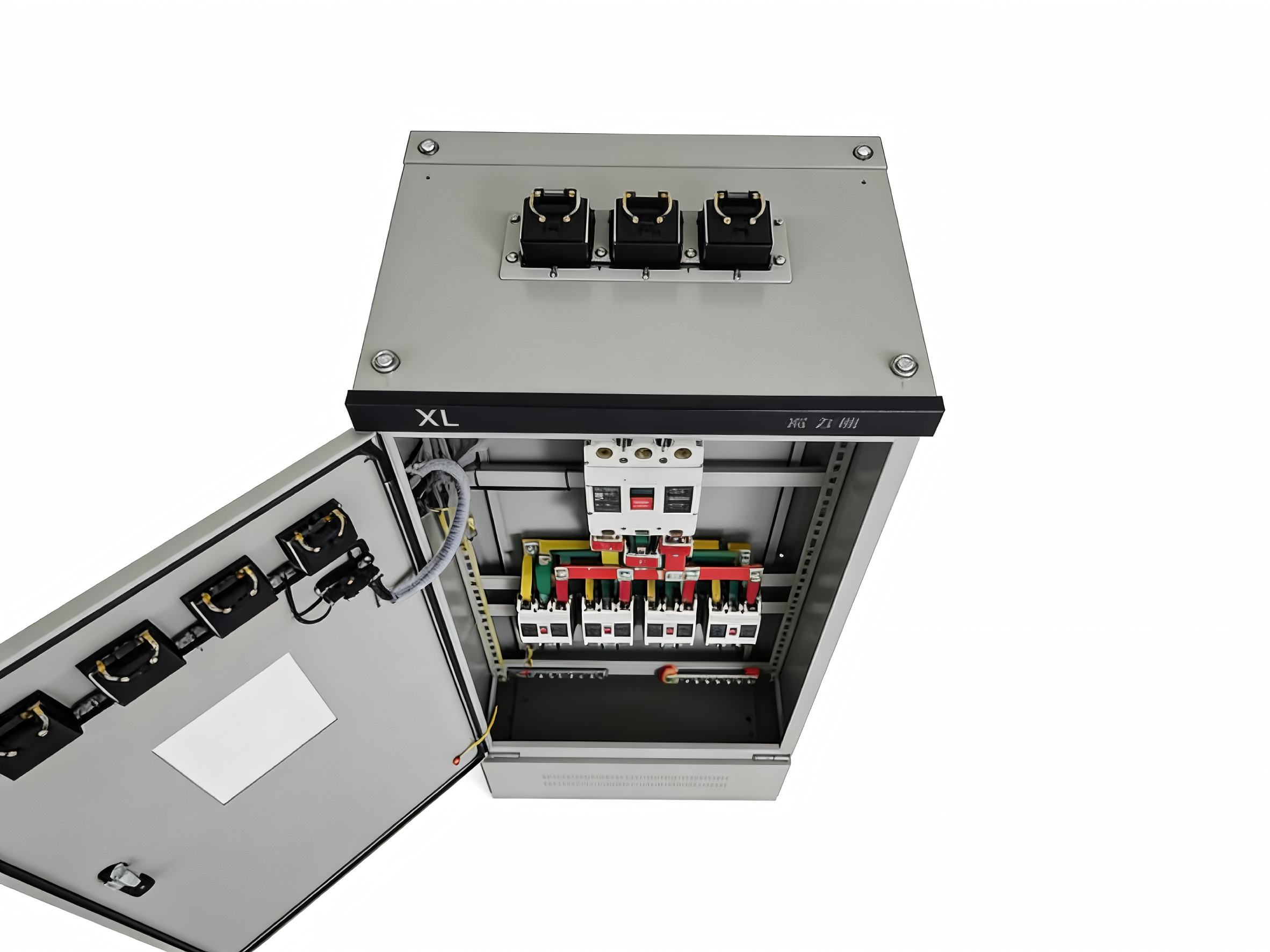

Compact and practical, easy to install | The cabinet is made of cold-rolled steel plate by bending and welding, with a compact size (conventional size:Width: 600/800/1000 × Depth: 800/1000 × high:2200mm), which saves the installation space. It supports two installation methods: wall-mounted and floor-standing. The direction of incoming and outgoing lines can be customized (top & bottom/bottom, top & out), enabling flexible on-site wiring. |
Economical and efficient, with outstanding cost-effectiveness | The fixed structure simplifies the production process and reduces costs by 30%-40% compared with draw-out switchgear. It is suitable for power distribution projects in budget-sensitive small and medium-sized factories, shops, buildings and other scenarios. Core components are selected from national standard brands to ensure stable performance and low maintenance costs. |
Safe and reliable,with comprehensive protection | Integrated with overload, short-circuit and leakage protection functions; the cabinet door is mechanically interlocked with the circuit breaker, making the door unable to close when the breaker is in the open state. The cabinet features reliable grounding with a grounding resistance of ≤4Ω. Internal components adopt a layered layout with optimized heat dissipation channels to prevent heat accumulation and potential safety hazards. |

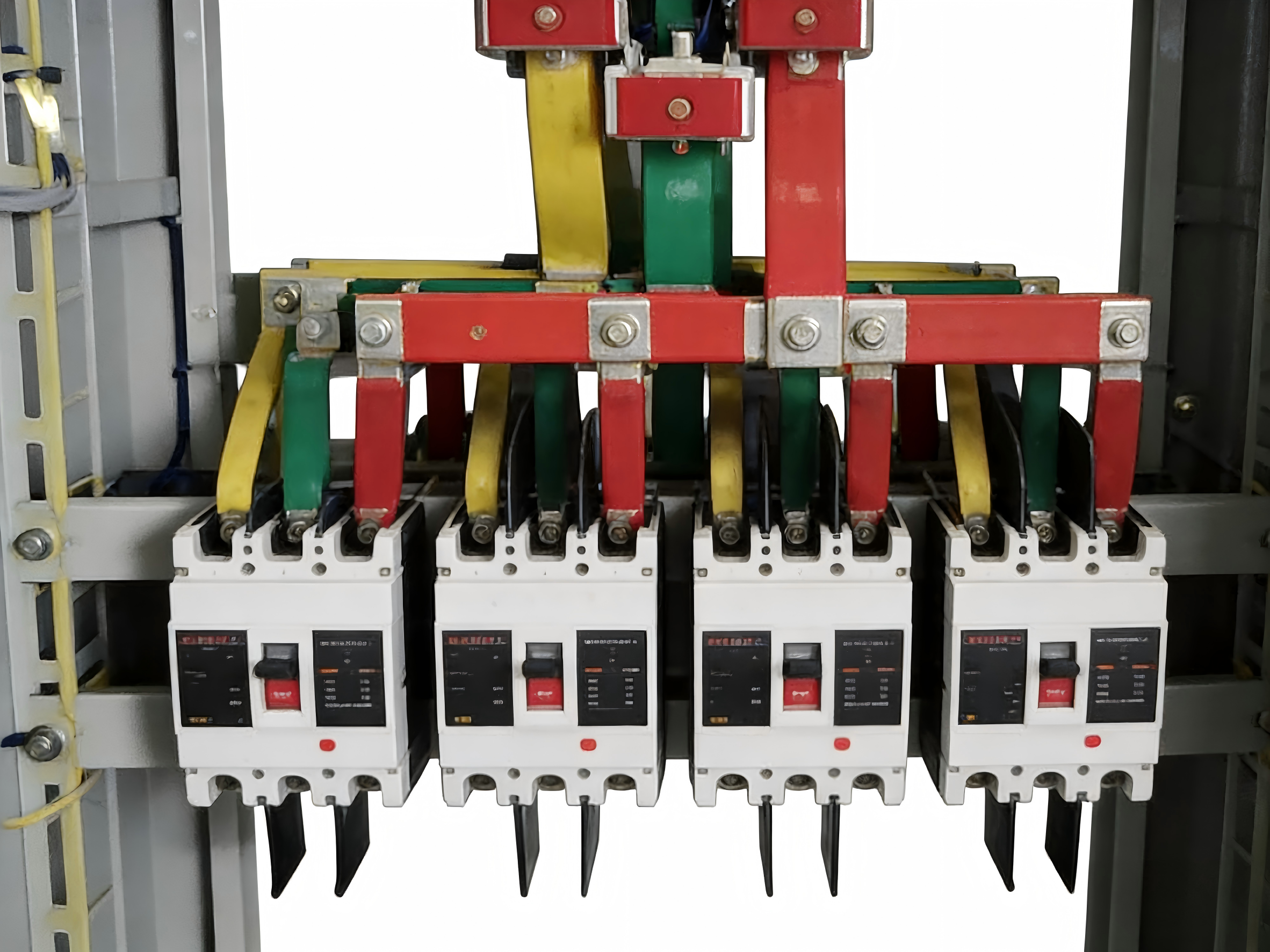

Modular configuration,customized as needed | It can be integrated with circuit breakers, contactors, thermal relays, instruments and other components as required, and realize multiple functions including power distribution, direct motor start/star-delta start and lighting control, adapting to various load types. |
