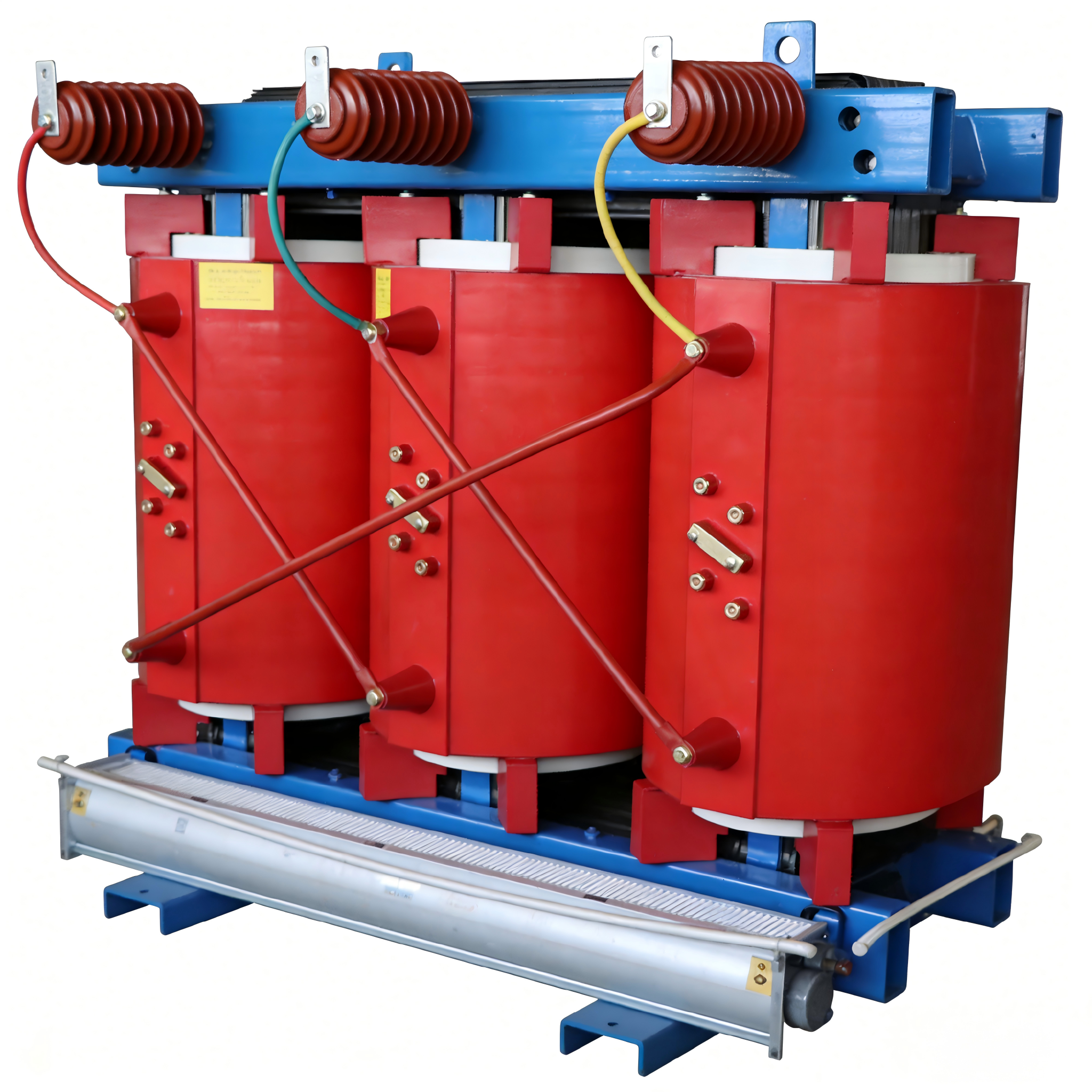

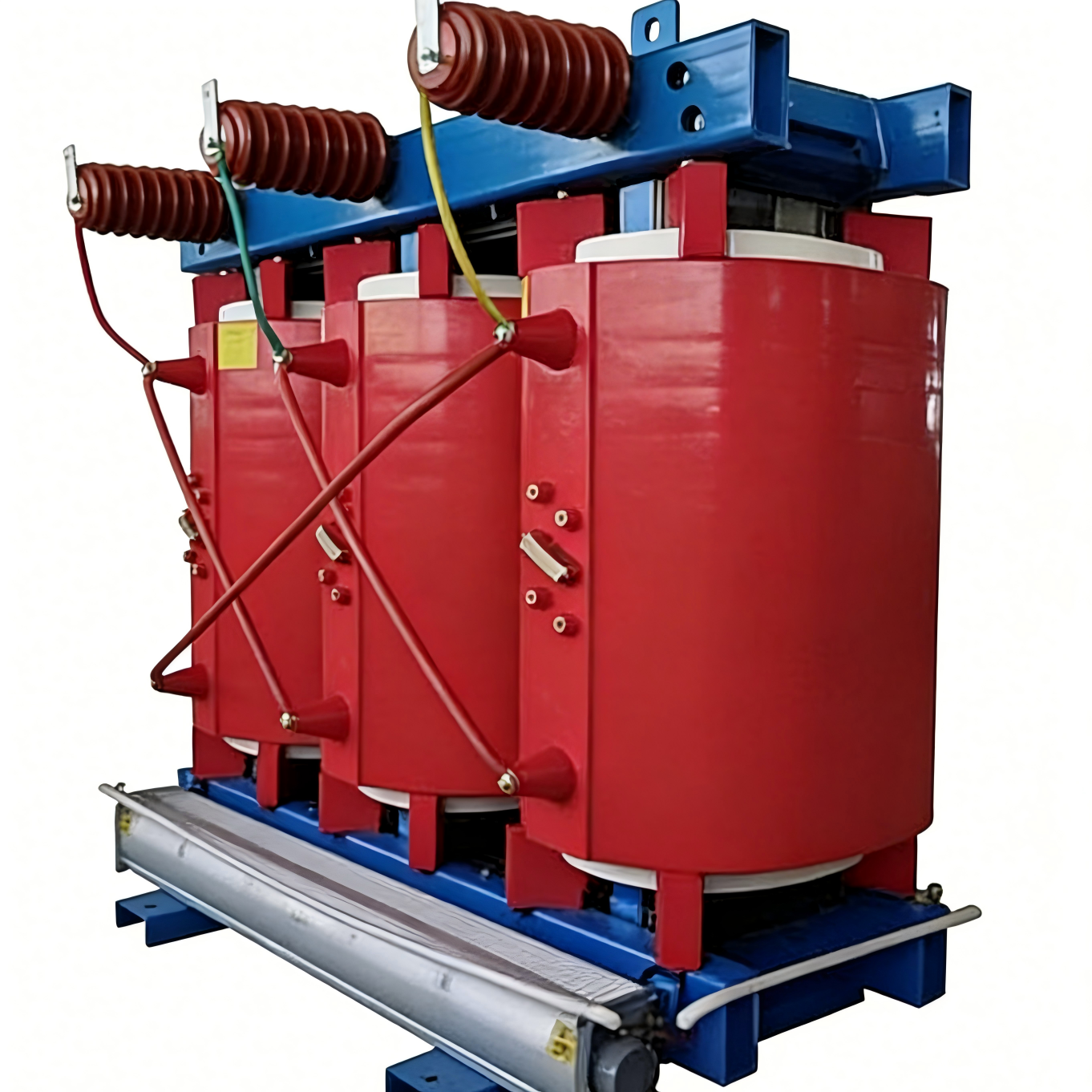

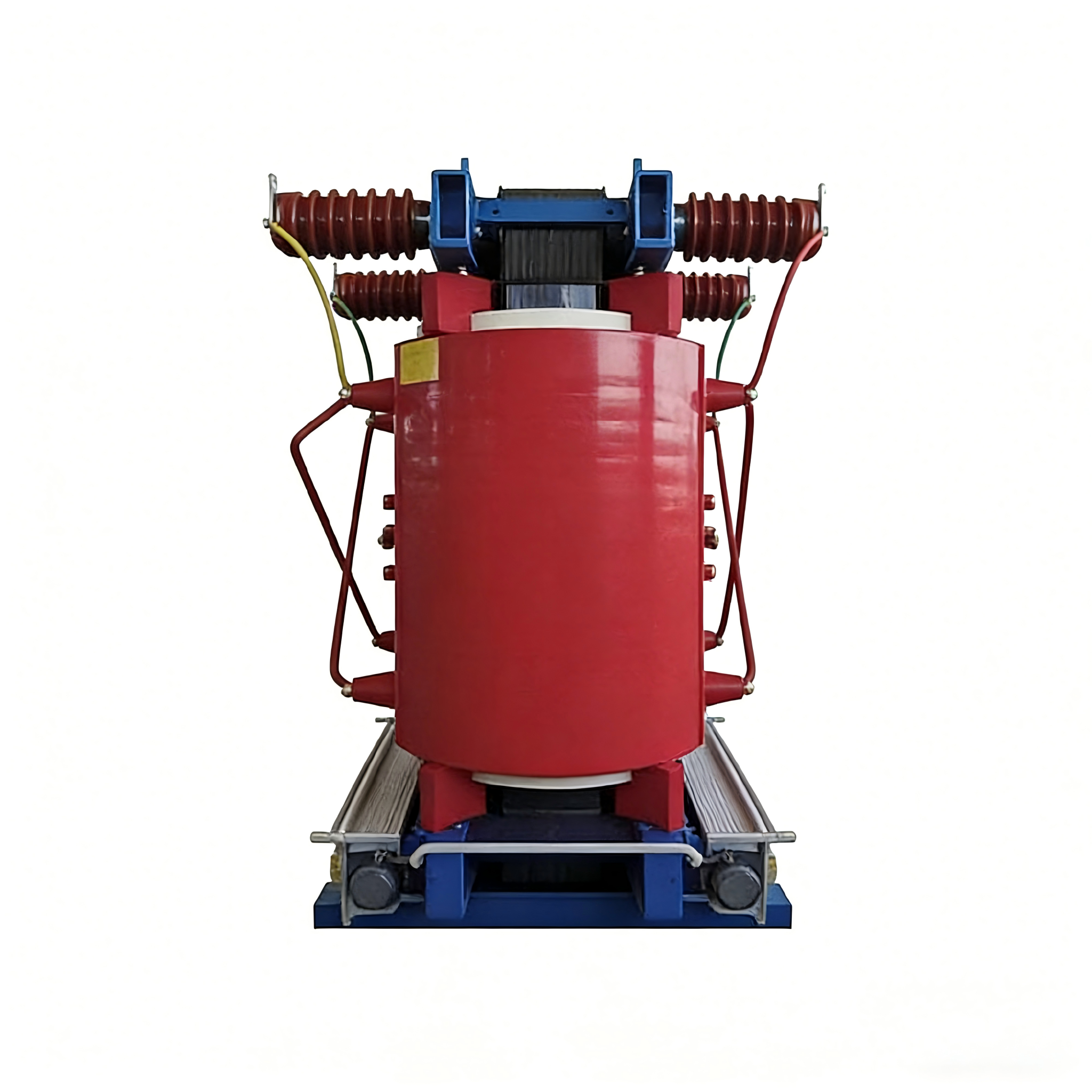

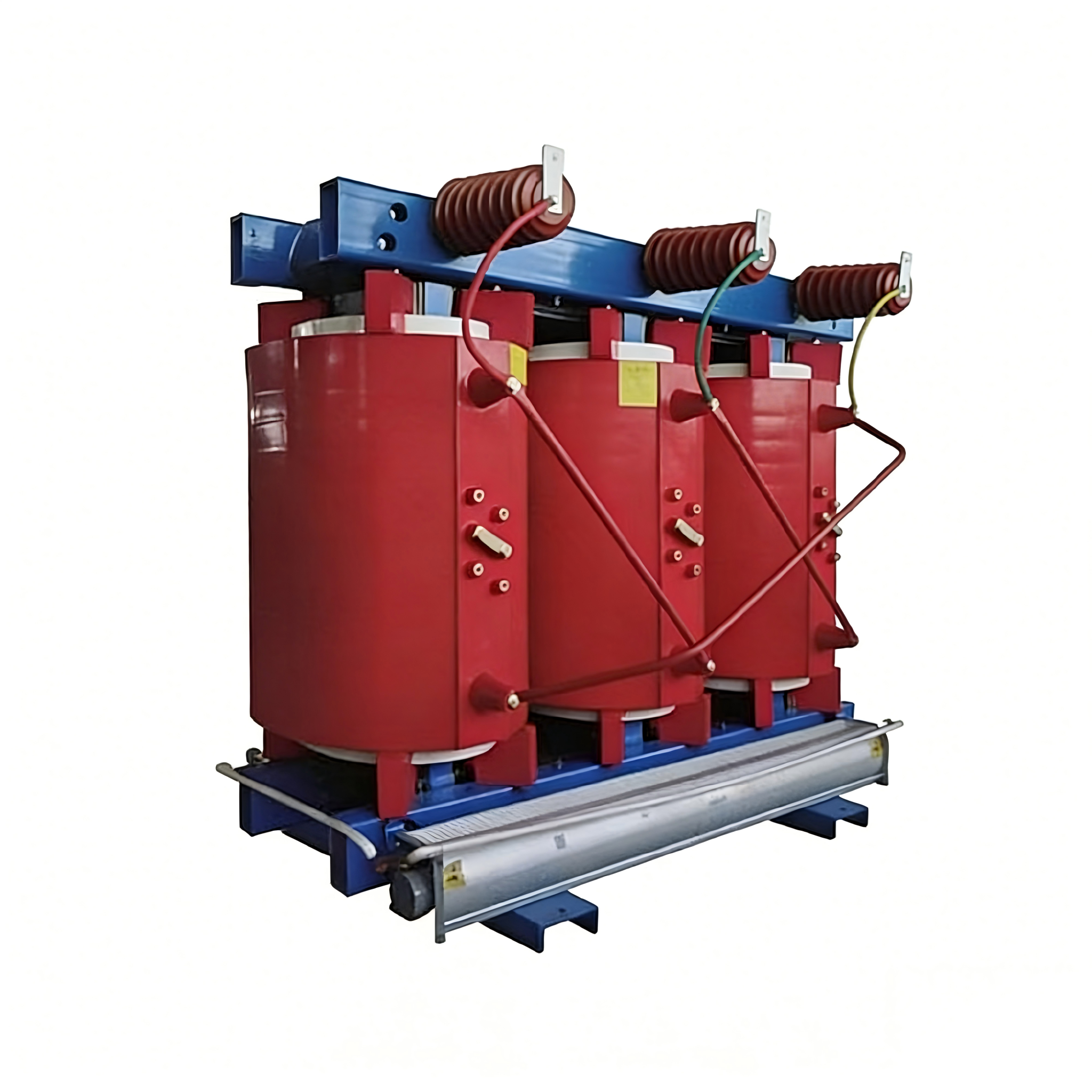

Suitable for SCB13-（1000~10000）/35kV dry type transformer with high fire protection requirements
Suitable for SCB13-（1000~10000）/35kV dry type transformer with high fire protection requirements
Suitable for SCB13-（1000~10000）/35kV dry type transformer with high fire protection requirements
Suitable for SCB13-（1000~10000）/35kV dry type transformer with high fire protection requirements
Suitable for SCB13-（1000~10000）/35kV dry type transformer with high fire protection requirements
Suitable for SCB13-（1000~10000）/35kV dry type transformer with high fire protection requirements
Suitable for SCB13-（1000~10000）/35kV dry type transformer with high fire protection requirements
Suitable for SCB13-（1000~10000）/35kV dry type transformer with high fire protection requirements
Suitable for SCB13-（1000~10000）/35kV dry type transformer with high fire protection requirements
Suitable for SCB13-（1000~10000）/35kV dry type transformer with high fire protection requirements
Widely used in places with high fire prevention requirements such as mines, oil fields, subways, power plants, schools, hospitals, commercial centers, high-rise buildings, etc., with stable performance, safety and reliability

  • Ouxu

  • 500 units/month (adjusted according to model and order quantity)

  • 5 unit (30% deposit required for customized products)

  • China

  • 650-3500kg(depending on capacity)

  • 730X650X500-1420x1100x870mm

  • Determine based on specific product models

库存： 0
Add to Basket
Inquire

More attributes

Model Interpretation

Letter/Number

Meaning

S

Thee-phase

C

Cast resin insulation

B

Foil winding

13

Performance level code(energy efficiency class per GB 20052-2024

□

Performance level code

35KV

Rated high voltage

Dry-type

No insulating oil,air-cooled

Product Highlights

1.Energy Efficiency - 30% lower no-load loss than traditional models, meeting global energy-saving trends

2.Total Cost of Ownership - 70% lower maintenance costs over 20-year lifespan

3.Customization Capability - Tailored solutions for voltage, capacity, taps, protection class, and accessories

4.Global Service Network - Technical support, spare parts supply, and on-site installation guidance worldwide

Product Details

Parameter

values

Voltage

35kV(high voltage side)

Capacity range

1000kVA~10000kVA

Insulation level

B(100℃)/F(120℃)/H(℃)

Cooling method

AN(natural air cooling)/AF(forced air cooling,can increase capacity by50%)

Voltage regulation range

±5%or±2×2.5%(without excitation voltage regulation)

Protection level

IP20(standard)/IP54(outdoor type)

The noise level

10-15dB lower than the national standard,≤65dB

Partial discharge capacity

≤5PC

Working temperature

-30 ℃~+45℃
