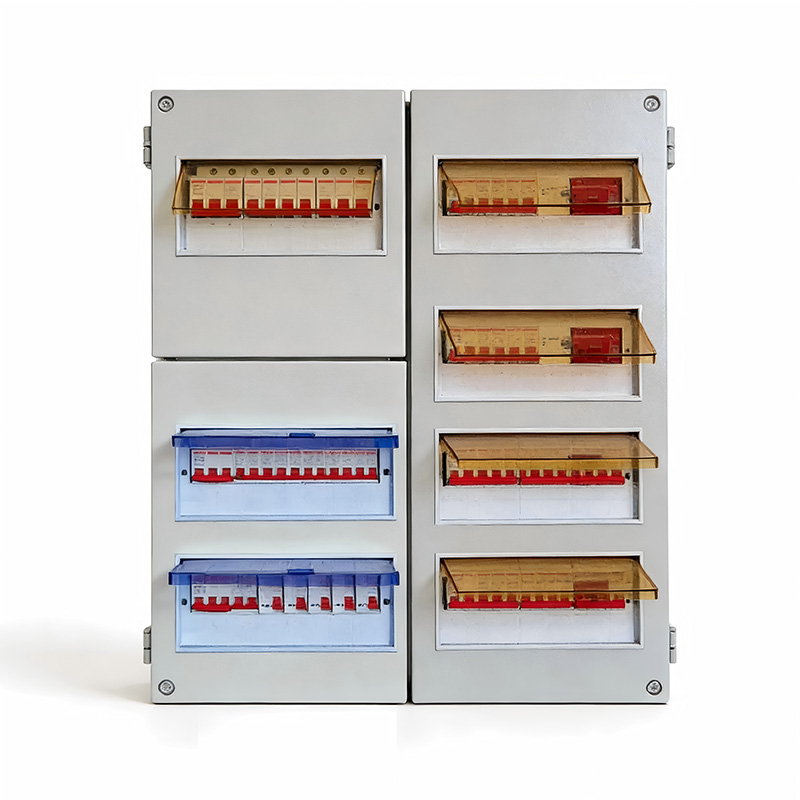

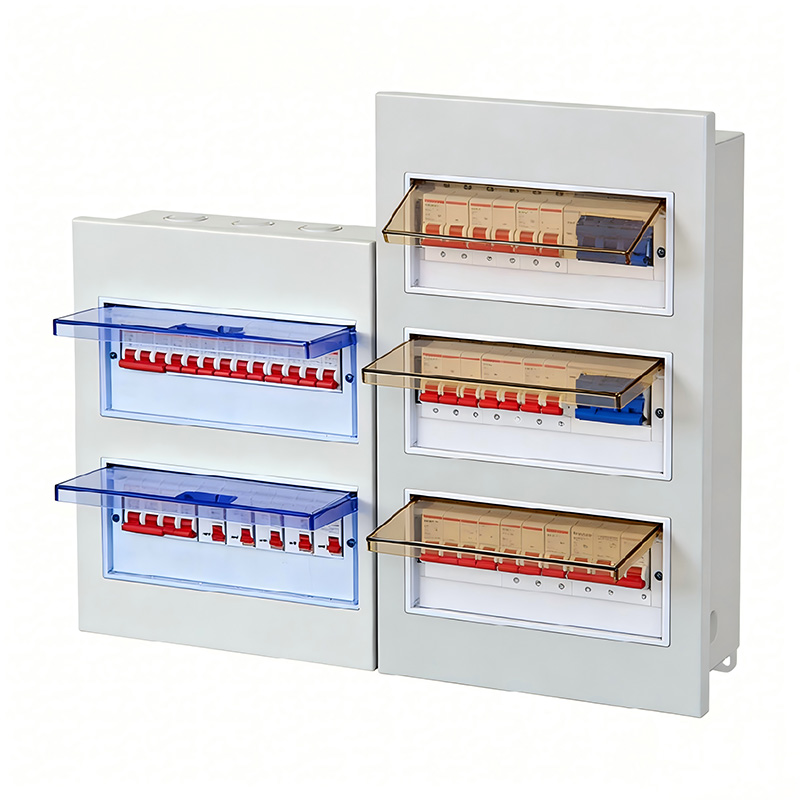

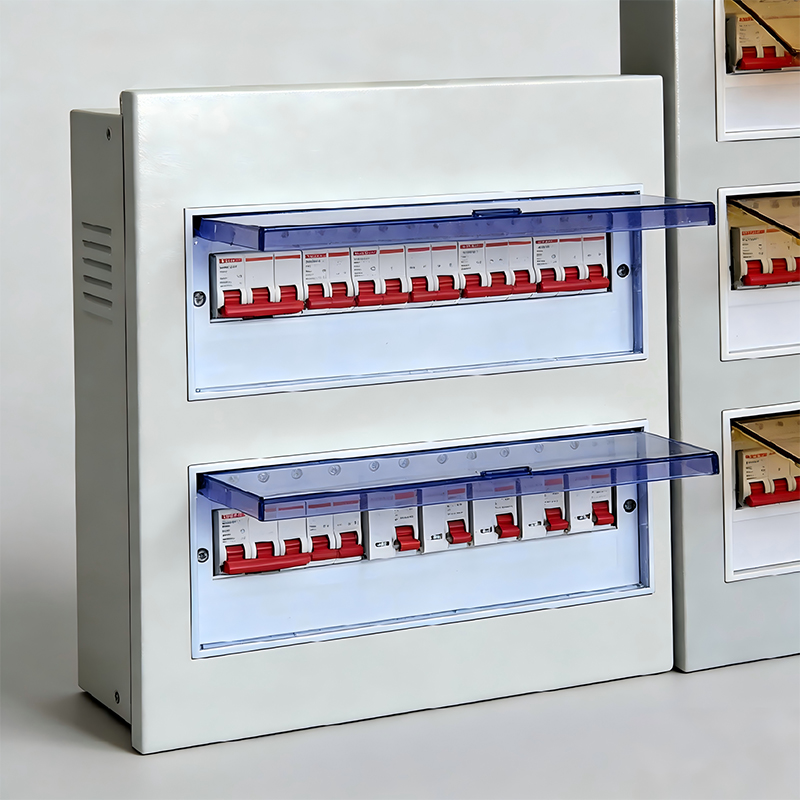

Small household XM lighting distribution box
Small household XM lighting distribution box
Small household XM lighting distribution box
Small household XM lighting distribution box
Small household XM lighting distribution box
Small household XM lighting distribution box
Small household XM lighting distribution box
Small household XM lighting distribution box
This is an indoor low-voltage terminal distribution equipment, which is also the core device used for centralized control and protection of lighting circuits in building electrical systems

  • Ouxu

  • 500 units/month (adjusted according to model and order quantity)

  • 5 unit (30% deposit required for customized products)

  • China

  • 2-5kg

  • 250×200×120- 345×295×145mm

  • Determine based on specific product models

库存： 0
Add to Basket
Inquire

More attributes

parameter

Standard range.

Typical value(XM-12/220V)

Ratedw orking voltage

Single phaseAC220V/Three phaseAC
380V(0.4KV)

Single phaseAC220V

Rated insulation voltage

AC660V

AC660V

Rated operating frequency

50Hz(customizable 60Hz)

50Hz

Ratedw orking current

Main sw itch:63A/80A

Spi circuit:10A/16A/20A/25A/22A

Main sw itch 63A,branch circuit 10-
32A

Rated short-time withstand current

3kA/5KA(0.15)

5KA(0.15)

Core protective components

Miniature Circuit Breaker(MCB)+Leakage
Protection Device(RCD/RCBO)

MCB+RCBO(residual current circuit breaker)

Installation method

Wall mounted visible/concealed
(embedded)

Concealed installation(embedded)

Protection level

IP20/IP30

IP20

Cabinet material

Cold rolled steel plate/flame retardant
plastic

Cold rolled steel plate(metal version)

internal layout

Modular guide railinstallation,layered
layout

Layered up and down(main switch+sub circuit)

Number of circuits

6/8/10/12/16/24 circuits

12 circuits

Product Highlights

Comparis on item

XM lighting distribution box

PZ30 series

XL power cabinet

pice

Economical and affordable(100- 500 yuan)

Similar(150-500 yuan)

Higher(starting from 800
yuan)

Applicable scenarios

Home lighting,small appliances

Same Left,More Popular

Industrial and high-power
equipment

Protection level

IP30(indoor)

IP30

IP30(optional higher)

number of circuits

Up to 48 digits

Up to 40 people

Less emphasis onpower
control

advantage

Economical and  practical,witha

High market recognition,

Strong load capacity,

Product Details

parameter name

Standard Configuration

rated voltage

AC220V(single-phase,household standard)
Voltage)

rated current

Main sw itch:63A/100A(optional) Select)Circuit current:10A-63A

Number of circuits

6-18 people(customized according to the layout requirements)

Protection level

IP30(indoor dustproof,antifinger accidental touch)

Cabinet material

1.0-1.5mm cold-rolled steel plate(electrostatic)
Spray coating/ABS engineering plastics(resistant)
Burning)

Installation method

Wall mounted(open/concealed optional)

protection function

Overload protection,short circuit protection(optional)
Leakage protection)

Applicable Environment

Temperature-25℃~+40 ℃,humidity ≤90%(no condensation),altitude ≤2000m

execution standard

GB7251.3 IEC60439-3
