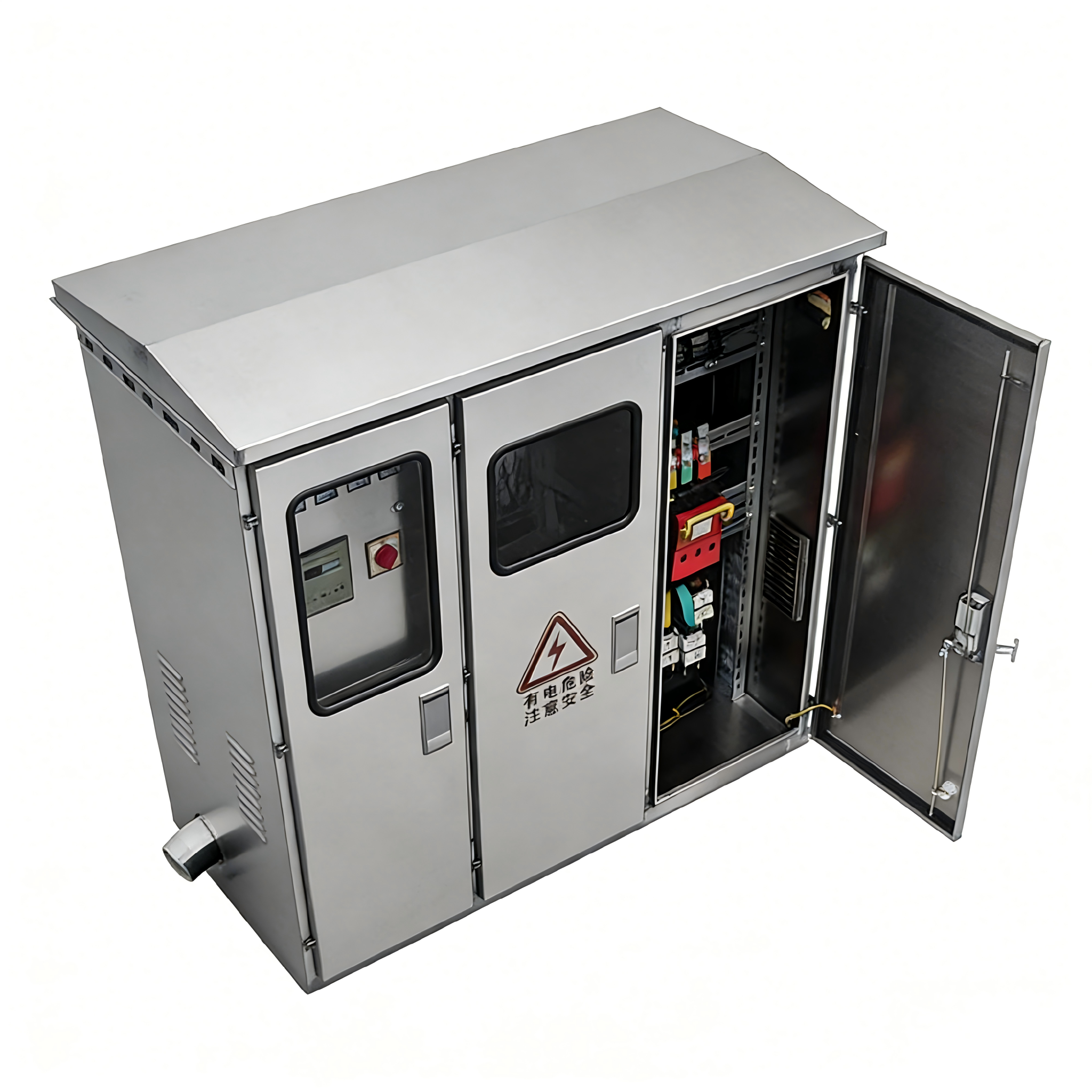

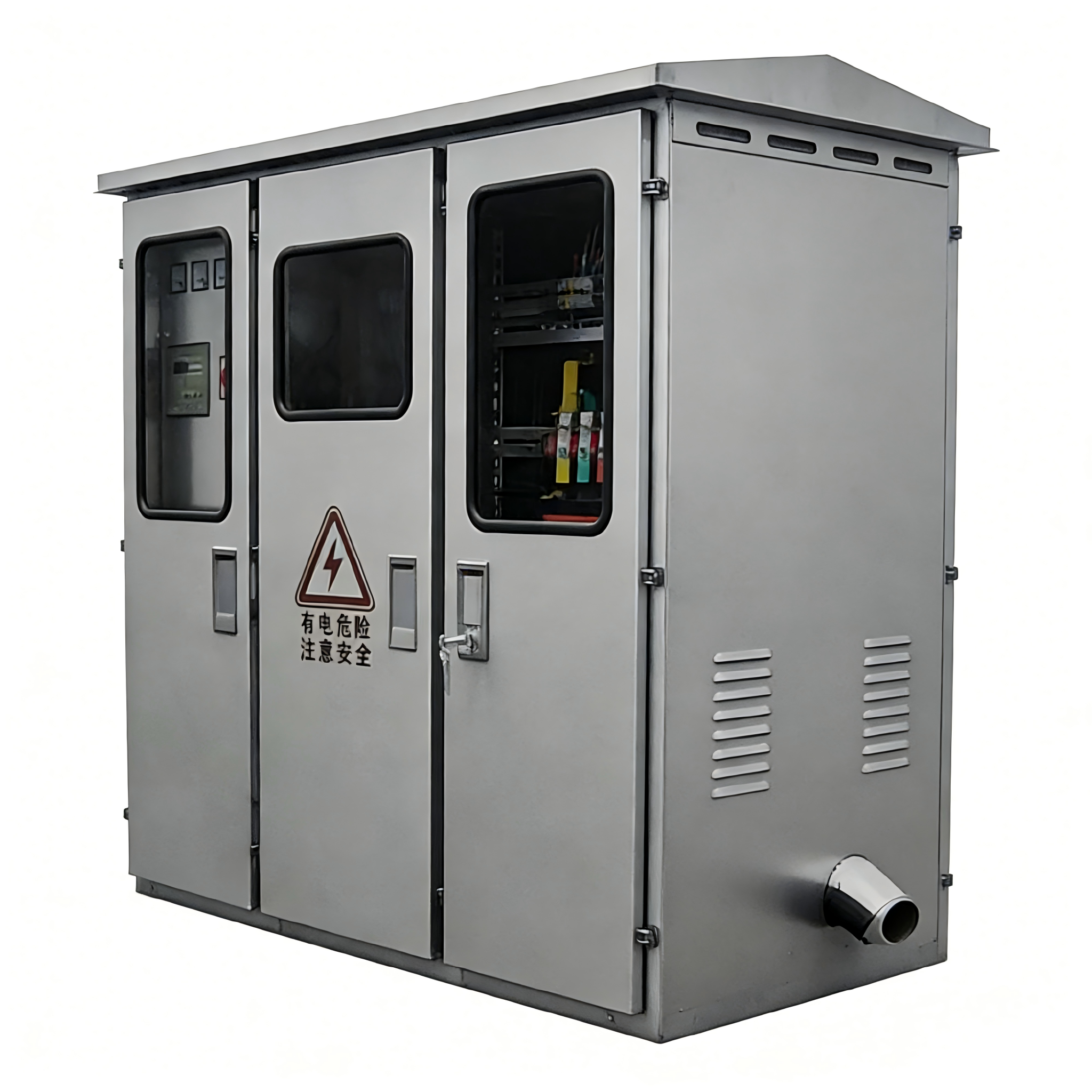

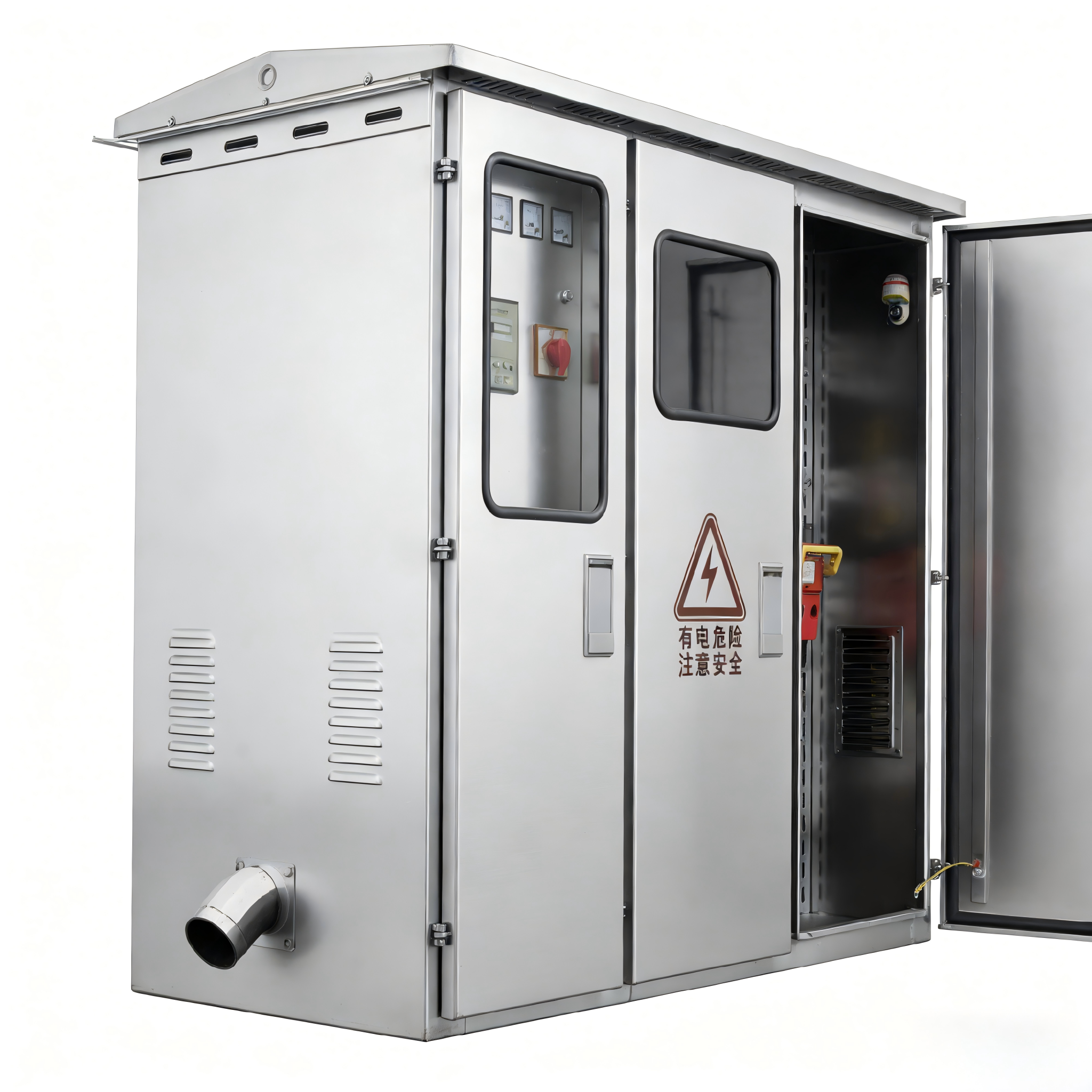

Small and cost-effective multifunctional JP comprehensive distribution box with short circuit, overload, overvoltage, and leakage protection
Small and cost-effective multifunctional JP comprehensive distribution box with short circuit, overload, overvoltage, and leakage protection
Small and cost-effective multifunctional JP comprehensive distribution box with short circuit, overload, overvoltage, and leakage protection
Small and cost-effective multifunctional JP comprehensive distribution box with short circuit, overload, overvoltage, and leakage protection
Small and cost-effective multifunctional JP comprehensive distribution box with short circuit, overload, overvoltage, and leakage protection
Small and cost-effective multifunctional JP comprehensive distribution box with short circuit, overload, overvoltage, and leakage protection
Small and cost-effective multifunctional JP comprehensive distribution box with short circuit, overload, overvoltage, and leakage protection
Small and cost-effective multifunctional JP comprehensive distribution box with short circuit, overload, overvoltage, and leakage protection
The JP series outdoor comprehensive distribution box is an outdoor comprehensive distribution device that integrates multiple functions such as metering, outgoing lines, and reactive power compensation. It has functions such as short circuit, overload, overvoltage, and leakage protection, and is small in size. Beautiful appearance, economical and practical. Installed on the poles of outdoor pole mounted transformers, it is a new generation ideal distribution product for urban and rural power grid renovation.

  • Ouxu

  • 500 units/month (adjusted according to model and order quantity)

  • 5 unit (30% deposit required for customized products)

  • China

  • 150-520kg

  • 1600×800×600- 2000×1500×600

  • Determine based on specific product models

库存： 0
Add to Basket
Inquire

More attributes

Comparison item

SRM□-12 Inflatable Cabinet

Traditional air insulated ring main unit

advantage

insulating medium

SF:gas

Air/Solid Insulation

Excellent insulation arc extinguishing,small size maintenance free

Protection level

IP67

IP3X

Adapt to harsh environments and not affected by external factors

Maintain demand

maintenance-free

Regular cleaninglinsulation testing

Reduce operation and maintenance costs and workload

volume

Compact,single module
small

large in size

Save installation space

safety

Fully enclosedwithout exposed charged bodies

Partial Nudity

Prevent electric shock and ensure personal safety

modularization

Flexible combination, expandable

Combination restricted

Adapt to multiple w iring schemes

Product Highlights

Comparison item

JP comprehensive distribution box

Ordinary distribution box

GGD switchgear

Functional integration degree

Extremelyhigh (distribution+metering+compens ation+p rotection+monitoring)

Low (basic distribution and protection)

Central(main distribution
and protection)

Applicable

scenarios

outdoor,transformer low-voltage side, requiring comprehensive management

Indoor,terminal power distribution,simple scenarios

Indoor and large-s cale
power distribution system

Protection level

P54(Outdoor Rainproof and Dustproof)

IP30(generally dustproof)

IP30(optional IP40)

Intelligence level

High (supports remote monitoring and automatic compens ation)

No intelligent function

Optional intelligent monitoring module

Volume size

Medium(compact design)

small

big

Installation method

Column or ground installation

Wall mounted or floor
mounted

floor-standing

Product Details

parameter name

Standard configuration

Basic Parameters

Rated voltage:AC  0.4KV(50Hz)
Rated current:≤630A
Rated frequency:50Hz

Protection and Environment

Protection level:IP54(outdoor rainproof type)

Environmental temperature:-25℃~+40 ℃
Relative humidity:≤95%(no condensation)
Altitude:≤2000m

Eectrical performance

Short time withstand current:15kA/15
Lightning protection:40kA(8/20μs waveform)
-Insulation resistance:≥10M

structural parameters

Cabinet material:1.5-2.0mm cold-rolled steel pate(optional 304
stainless steel)
Installation method:pole mounted(transformer low-voltage
side) or ground mounted
Standard size:800×600×2200mm(width ×depth ×height)

Intelligent functions

Communication interface:RS485/Modbus,optional GPRS/4G
Measurement accuracy:Voltage,current:O Level5;Pow er
and electrical energy:Level 1.0
Reactive pow er compensation capacity:15kvar~120kvar
(configured according to demand)
