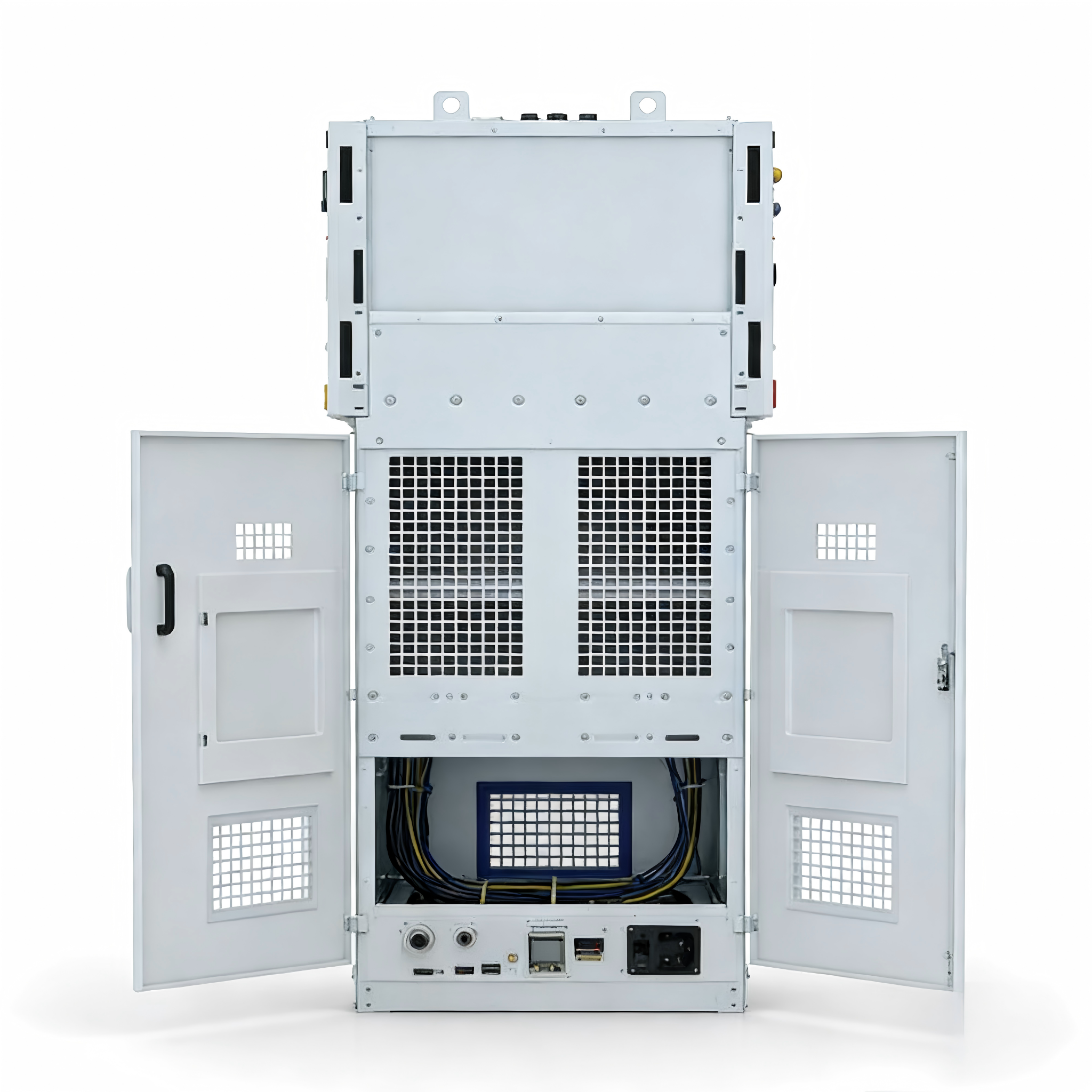

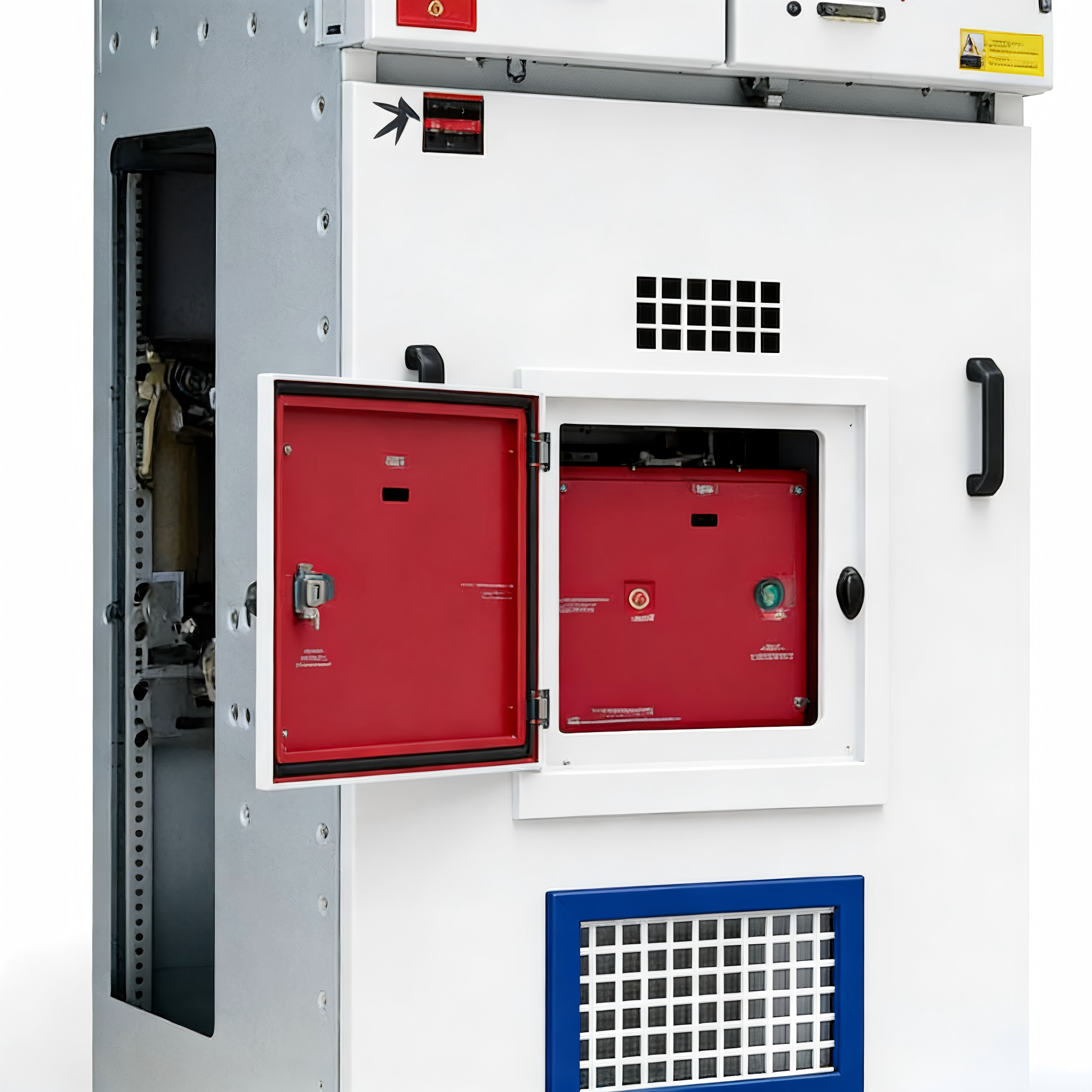

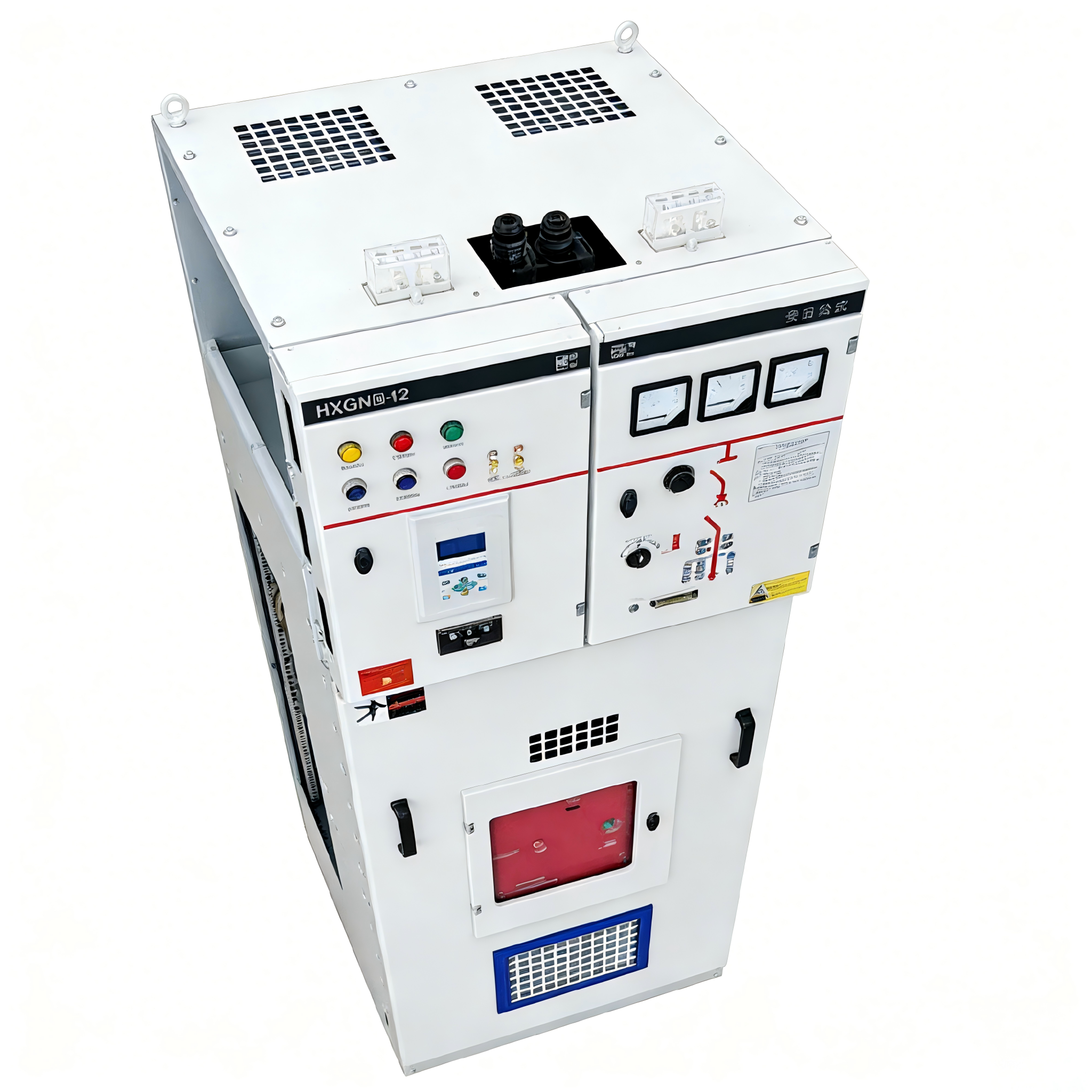

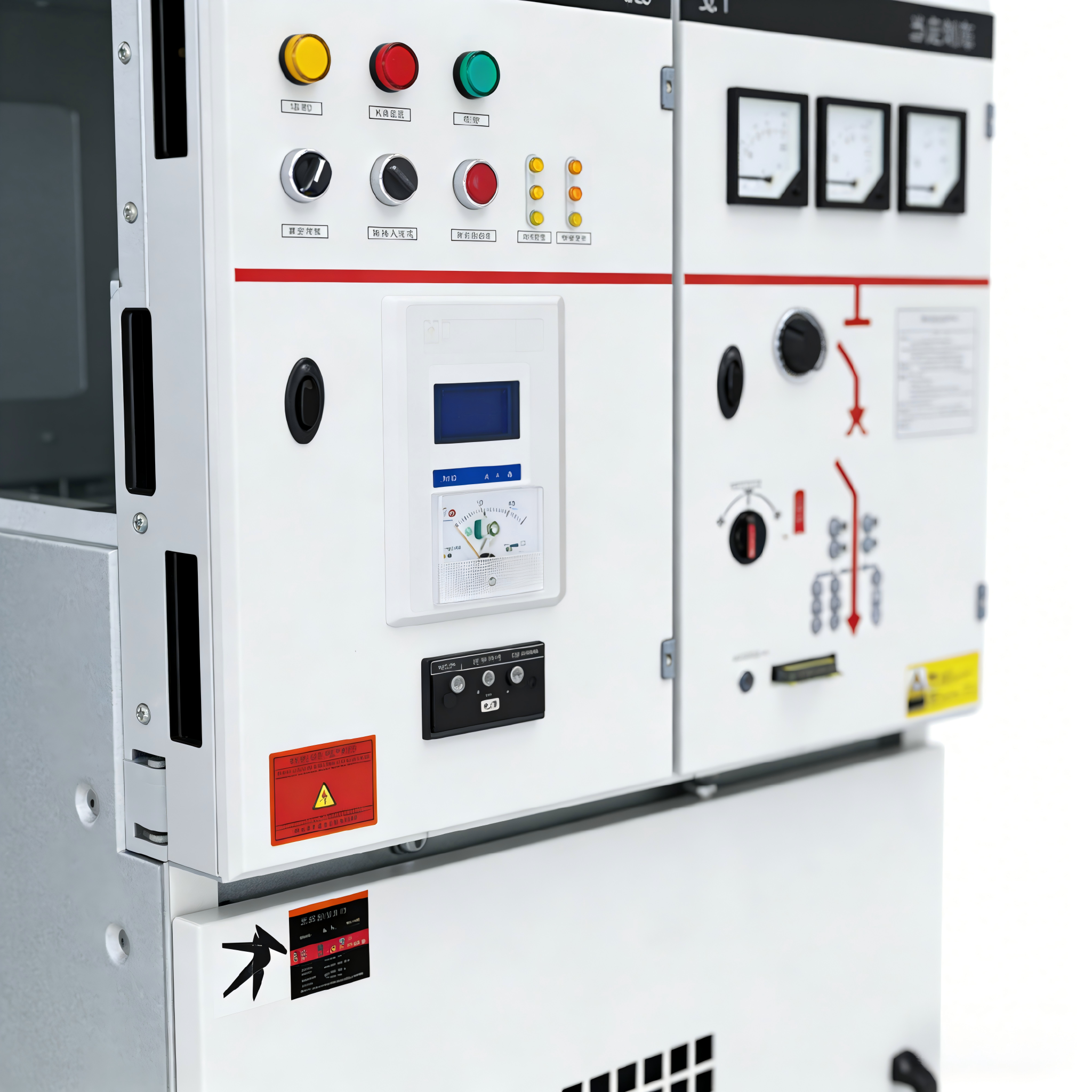

Energy saving and efficient HXGN□-12 Box type Fixed AC Metal Enclosed Switchgear
Energy saving and efficient HXGN□-12 Box type Fixed AC Metal Enclosed Switchgear
Energy saving and efficient HXGN□-12 Box type Fixed AC Metal Enclosed Switchgear
Energy saving and efficient HXGN□-12 Box type Fixed AC Metal Enclosed Switchgear
Energy saving and efficient HXGN□-12 Box type Fixed AC Metal Enclosed Switchgear
Energy saving and efficient HXGN□-12 Box type Fixed AC Metal Enclosed Switchgear
Energy saving and efficient HXGN□-12 Box type Fixed AC Metal Enclosed Switchgear
Energy saving and efficient HXGN□-12 Box type Fixed AC Metal Enclosed Switchgear
Energy saving and efficient HXGN□-12 Box type Fixed AC Metal Enclosed Switchgear
Energy saving and efficient HXGN□-12 Box type Fixed AC Metal Enclosed Switchgear
The HXGN □ -12 series AC metal ring network switchgear is a compact and expandable metal enclosed ring network switchgear suitable for distribution automation, with FLN □ -12 SF6 load switch as the main switch and two full cabinets using air insulation. Simple structure, flexible operation, reliable interlocking, and easy installation. Provide satisfactory technical solutions for various application scenarios and user requirements

  • Ouxu

  • 500 units/month (adjusted according to model and order quantity)

  • 5 unit (30% deposit required for customized products)

  • China

  • 360-1450kg(According to customization)

  • 1900×600×1200-1900×1800×1200mm

  • Determine based on specific product models

库存： 0
Add to Basket
Inquire

More attributes

Letters/Nuxbers/Sabols

English meaning

H

Ring main unit

X

Box-type

G

Fixed type

N

Indoor installation

□

Optional configuration code

12

Rated voltage (kV)

Box type fixed ACmetal enclosedswitchgear

Product category &structural feature

Product Highlights

Application field

Core strengths

Urban distribution network renovation

Compact design suitable for smallspaces, energy- saving features reduce operating costs

Industrial plant area

High reliability reduces downtime losses, low  maintenance reduces factory operation and  maintenance costs

commercial complex

Save space in the distribution room and improve the utilization rate of commercial area

residential community

Low noise,low energy consumption,improve living comfort

New energy access

Adapt to distributed energy grid connection and support smart grid demand

Product Details

Parameter

Standard Configuration

rated voltage

12kV(maximum operating voltage 12.7kV)

rated current

630A(optional 400A/1250A)

Rated short-circuit breaking current

20kA/25kA/31.5kA

Insulation method

SF6 gas/air/solid insulation (optional)

Protection level

IP4X(standard)/P54(enhanced)

Operation method

Manual/Electric(optional)

mechanical life

≥3000 times (vacuum circuit breaker)

Applicable ambient temperature

-35℃~+40℃
