Stacking Layers

Total Nominal Voltage(V)

Total Nominal Capacity
(Ah)

Total Rated Energy (kWh)

Applicable Scenarios

1 Layer

51.2

100

5.12

Small household emergency.RVpower supply

2 Layers

51.2

200

10.24

Daily backup power for ordinary families

3 Layers

51.2

300

15.36

Large family +photov oltaic supporting

4 Layers

51.2

400

20.48

Small commercial,farm microgrid

Highlight

Technical Support

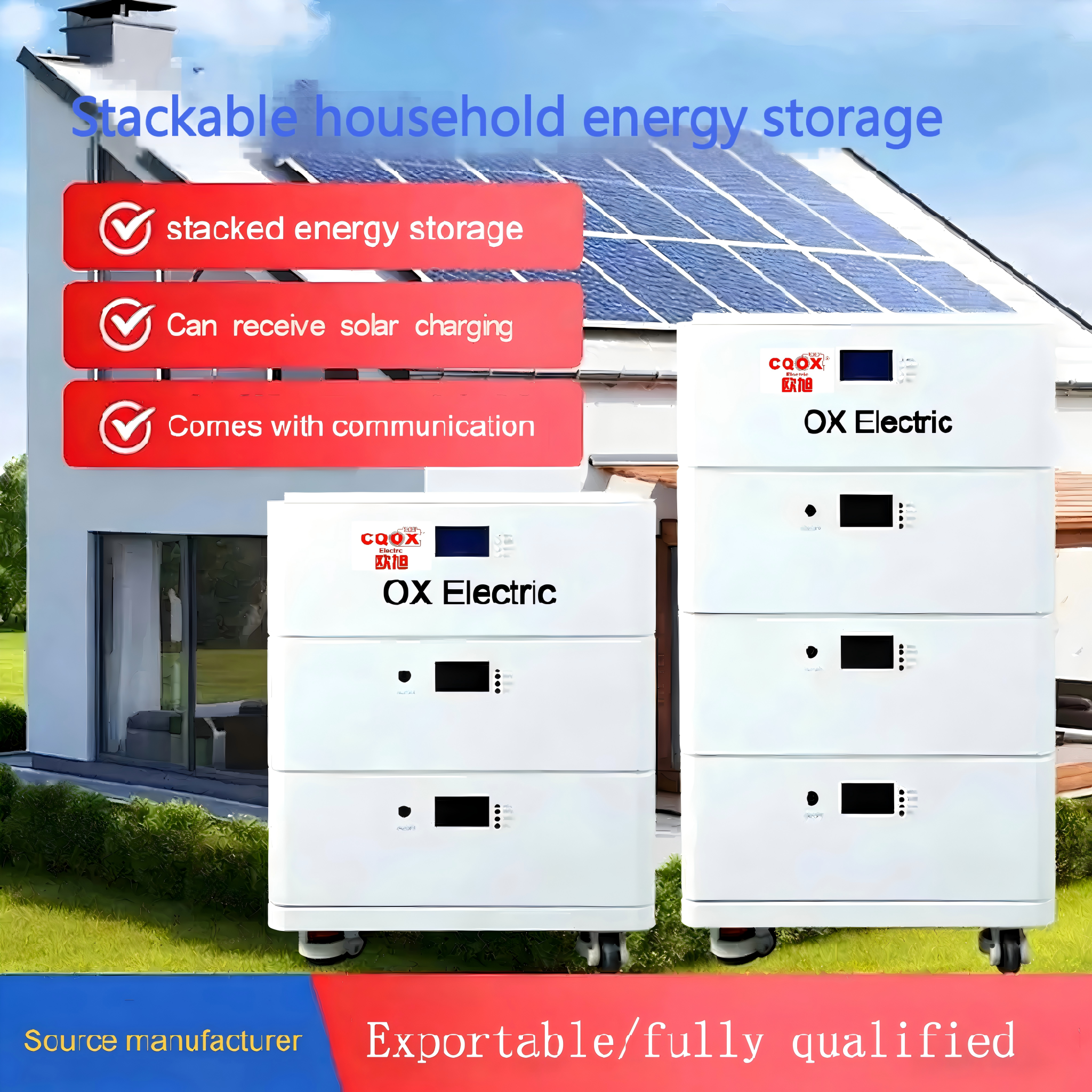

Flexible stacking design,scalable on demand

Supports 1-6 layers of free stacking,modular structure,single module works independently

Multi-scenario adaptation,fullcoverage

With wheel design,IP65 protection level,compatible with photovoltaic inverters

Reliable safety with core technical guarantee

Lithium Iron Phosphate cells,built-in  BMS intelligent management system

Source factory strength,market verified

Monthly output up to 5000+modules, exported to 20+countries,cumulative sales over 20,000 sets

Humanized detaildesign

LCD display/Bluetooth selectable, bottom wheel+lightweight design (48-52kg per module)

Parameter
Category

Parameter Item

Unit

Typical Value

Remarks

Electrical
Parameters

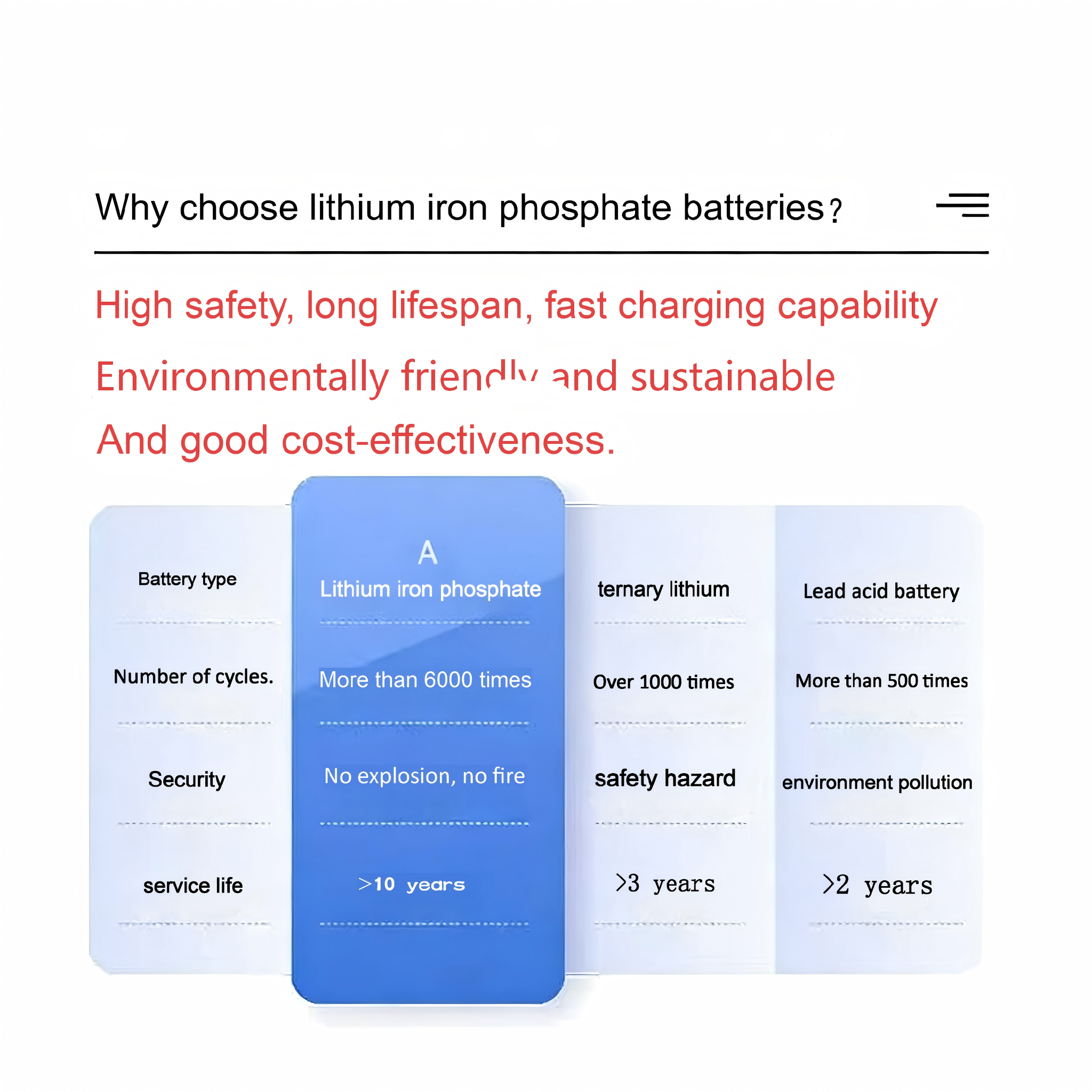

Battery Type

Lithium Iron Phosphate

Long cycle life and high thermal stability

Nominal Voltage

V

51.2

16-cell series design

Nominal Capacity

Ah

100/314 (customizable)

Capacity retention rate ≥95% under continuous 1C
discharge rate

Rated Energy

kWh

5.12(about 5kWh)/14kWh/16kWh.etc

--

EMS Protection Current

A

100Ah/314Ah

Supports maximum 100Ah/314Ah charge and discharge
current

Charge/Discharge Rate

C

0.5C(Standard)/1C(Peak)

Charge/discharge efficiency ≥95%at 0.5C

Mechanical
Parameters

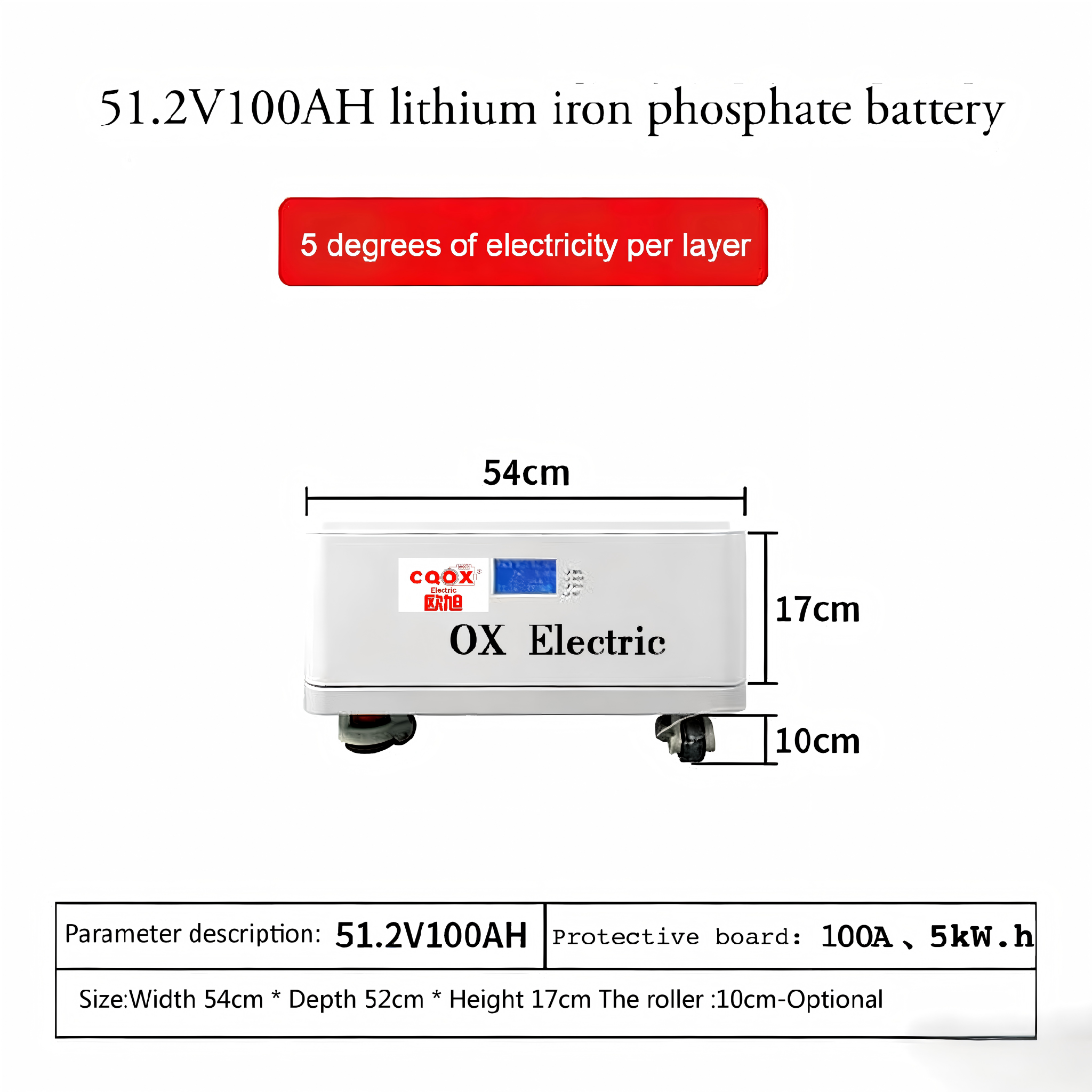

Single Module Dimension
W×D×H)

mm

540×520×170

Suitable for standard home installation space

Wheel Height (Optional)

mm

100

With wheel design,easy to move by one person

Single Module Net Weight

kg

48~52

Typical weight of lithium iron phosphate system

Performance
Parameters

Cycle Life(80%DOD)

Cycles

≥6000

Capacity retention 280%after cycling

Monthly Self-Discharge
Rate

%/Month

≤ 3

Under normal temperature storage at 25℃

Operating Temperature
Range

℃

-10~60

Supports low-temperature start-up

Communication Protocol

-

RS485/CANbus

Compatible with photov oltaic inverters and home
energy management systems

Safety
Parameters

Protection Level

IP

IP65

Dustproof and waterproof,suitable for indoor/semi-outdoor installation

Flame Retardant Grade

-

UL94V-0

Shell nd cell packaging materials mee fire
protection standards

Protection Functions

-

Overcharge/Overdischarge/Ove
rourrent/Short
Circuit/Overtemperature/Underv
oitage Frotection

Multiple software and hardware protection,response
time ≤10ms
